• $3,937.60
    Unit price per
  • Save $984.40
Shipping calculated at checkout.

  • Battery-driven IP65 color LED moving head
  • 19 RGBW LEDs and a 8.5º beam angle
  • Continuous pan movement, built-in macro effects
  • DMX, RDM and 100% wireless (power and control)
  • Extremely bright with full color mixing
  • Ultra-high-speed strobe effect
  • Silent performance; no internal cleaning needed
  • Flicker-free / Programmable scenes

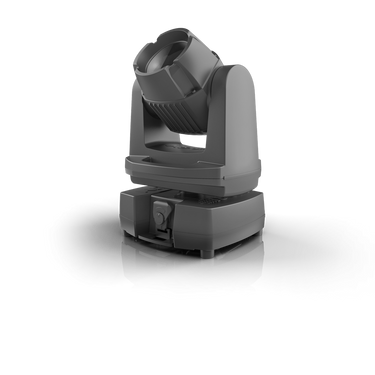

The G-1 Wash moving head is the ideal companion for the G-1 Beam, and is designed for any type of outdoor event and smaller venues in need of small moving wash lights with high output, uniform colors from a distance and color calibration to match other SGM fixtures. The G-1 Wash offers high contrast levels and extreme brightness in a small physical footprint at a low power consumption. The G-1 Wash can be ordered with or without batteries, installed with a remote base, or without any base at all.


LED Technology
The G-1 Wash is a small and reliable LED luminaire with a powerful W color LED engine. Unlike other fixtures in its range, the G-1 Wash can operate during the rain, delivering a high output over long distances with almost no safety distance to surrounding objects (0.3 m minimum distance).
It comes in a configuration with 19 high-power LEDs; four red, four green, four blue and seven white LEDs. The LEDs expected lifetime is 50,000 hours.

Battery and wired operation
Being a 100% wireless moving head, the G-1 Wash offers a vast variety of options for your setup. However, the G-1 Wash can also be wired (with or without batteries). When used as a battery-driven fixture, the G-1 Wash offers an impressive 12 - 14 hours operation in typical use.

Special movement features
The G-1 Wash includes a fast endless pan movement feature, which truly expands the possibilities when programming the fixture. Furthermore, with the G-1 Wash, SGM has introduced a patent pending position pre-set programming. Thanks to this feature, it is possible to program up to nine internal pan / tilt presets that can be combined with up to eight internal standalone programs.

IP rating
The durable IP65-rating of the G-1 Wash luminaire ensures that the fixture is kept free of externally induced particles and liquids on internal optics and light sources, such as smoke fluid, dust, dirt, airborne pollution, and humidity. Thereby, the need to clean optics or gobos is eliminated and no internal corrosion will occur. It is ideal for outdoor applications, while being a sustainable and long-lasting choice for indoor events and installations as well.

The internal built-in dehumidifier protects this fixture from moisture, pollution and any other factors that can generate corrosion. The patented SGM dehumidification not only removes humidity but also prevents oxidation and condensation, while a gore-tex membrane equalizes internal pressure to prevent leaks. Learn more about dehumidification

The G-1 Wash delivers no less than 5078 luxes at 3 meters after optics, with a beam angle of 8.5º, and an efficacy of 38 lumen per watt. It gives the necessary brightness to create tight mid-air wash RGBW effects, while keeping a good f-stop for cameras and a 0.3m minimum safety distance to objects.

Thermal management
To achieve optimum performance of the LEDs at all times, this bright and accurate luminaire is optimized to manage heat impact through SGM's unique thermal management technology. The technology consists of a uniquely designed body and heat sink, which ensures optimal cooling of the LED chips. Additionally, the special aluminum alloy and surface treatment ensures maximum heat dispersion.
Like all SGM LED products, the G-1 Wash consists of SGM's superior thermal management technology and tested under extreme hot and cold conditions, which ensures that the LEDs always operate within safe parameters. Learn more about SGM thermal management

Mounting options
The G-1 Wash comes in two varieties: with or without the base unit. With the base, usability is diverse since batteries can be inserted, and thus positioning is independent from any power source proximity. Without the base, the G-1 Wash can be mounted onto the ceiling, in a rig or in a wall mount. In this case, the base can be placed remotely as power supply, or the head can be powered through an external power supply.


Included SGM technologies

This thermal management techonology provides Advaced Temperature Control monitored via sensors and software, keeping optimal LED junction temperatures, and ensuring maximum reliability for long-term use. The ThermalDriveTM system includes cutting-edge heat removal via passive thermal tecniques and active forced-air cooling (depending on the product), specifically designed to maintain LED efficiency while extending fixture's lifetime.

SGM uses Full Range Calibration in all LED fixtures over CIE space and black body curve, measured via spectrometer and SGM Illumination Lab software. To provide the best user experience, SGM's Color Match procedure ensures accurate wavelength reproduction within the product range via colored LEDs, dichroic filters, or CMY mixing (depending on the product); all of them specified to match the SGM color palette.


Optical Data
LED expected lifetime (L70) 50,000 hours
Lens angle 8.5 °
Lightsource 19 LEDs total, 4 Red, 4 Green, 4 Blue, 7 White (5.700K)
Native lens options 8.5°
Color temperature range 2000K - 10000K
Efficacy 38 lm/W
Lux @ 10m 549 lux
Lux @ 3m 5078 lux
Lux @ 5m 2194 lux
Maximum beam angle 8 °
Maximum field angle 8.5 °
Native beam angle(s) 8° (with 8.5° lens)
Color options Black - RAL 9004
Custom color - Any RAL
White - RAL 9010
IP class IP65
Material Aluminium
Net dimensions L x H x W 219 x 382 x 255 mm
Net dimensions L x H x W (inches) 8.6 x 15.1 x 10 inches
Net weight 8.9 kg (19.6 lbs)
Built-in macro effects 50 macros
Color calibration SGM proprietary, full color calibration
Dimming Smooth fade in, gamma corrected curve
Pan Endless
Pan modes 360°
360° Shortest path
Continuous CCW
Continuous CW
Strobe Ultra-high-speed strobe effects
Tilt 240°
DC voltage, nominal 24 VDC
Electrical protection Overload protection with automatic recover
Input voltage, nominal 100 - 240 VAC; 50 / 60 Hz
Max inrush current 230VAC 35 A
Max power consumption 55 W
Power Supply Unit Auto-ranging electronic switch-mode
Standby power consumption 7 W
Programming and Control
16-bit control Dimmer, pan and tilt
Cabled DMX 5 pin XLR input/output
DMX channels 13
DMX modes 1
Protocol CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
Wireless RDM
Setting and addressing Control panel
OLED graphical display / 4 buttons
Standalone mode
Standalone mode 8 Internal Standalone Programs
9 Internal Pan/Tilt Presets
Wireless DMX Lumen Radio with RDM
DMX data in/out IP65 XLR 5-pin cable, 0,2 m (7.8 in)
IP65 XLR 5-pin connector, Male
Power Power input connector
Mounting point 2 quarter-turn locking points for one Omega bracket
Orientation Any
Rigging possibilities Hanging (Omega Bracket included) or ceiling/wall mount (optional)
Safety features 2 attachment points for safety wire
Minimum distance to combustible materials: 0.3 meter (11 in).
Cooling Passive
Humidity (max.) 98 %
Temperature range, operating -40°C to 50°C
Temperature range, operating max 50 °C
Temperature range, operating min -40 °C
Temperature range, start-up -20°C to 50°C
Temperature range, storage -20°C to 25°C
Thermal protection Automatic overtemperature protection
Total heat dissipation, max power 187.7 BTU per hour
Total heat dissipation, standby 23.9 BTU per hour
Included items
Included items 2 m IP66 power cable pigtail
1 Omega bracket with quarter-turn fasteners
Safety instructions and installation quick guide
Battery capacity (non-stop) 6 - 8 hours
Battery capacity (typical use) 12 - 14
Battery charge time up to 100% 12 - 16 hours
Battery charge time up to 75% 8 - 12 hours
Battery option YES
Battery status Battery level indicator
Battery type Lithium-Ion battery
Memory effect 85% battery capacity after 500 full charge cycles
