• $4,020.80
    Unit price per
  • Save $1,005.20
Shipping calculated at checkout.

  • Battery-driven IP65 white light LED moving head
  • 2.8º beam angle, 19 gobos, color wheel
  • Continuous pan movement, gobo shake, fast strobe
  • DMX, RDM and 100% wireless (power and control)
  • 6,500K white, no hotspots
  • Ultra-high-speed strobe effect
  • Silent performance; no internal cleaning needed
  • Flicker-free / Programmable scenes

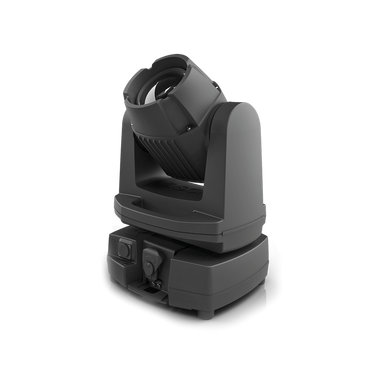

The G-1 Beam is the first powerful battery-driven moving head for outdoor use. Its lightweight and compact design provides a fast, easy and accurate solution for stage events, corporate productions, TV sets, car shows and any other installation that needs reliability, versatility and a quick setup. The results are high contrast levels and extreme brightness in a small physical footprint at a low power consumption. The G-1 Beam can be ordered with or without batteries, installed with a remote base, or without any base at all.


LED Technology
The G-1 Beam is a small and reliable LED luminaire with a powerful w white LED engine. Unlike other fixtures in its range, the G-1 Beam can operate during the rain, delivering a sharp and crisp beam with almost no safety distance to surrounding objects (0.3 m minimum distance). The LEDs expected lifetime is 50,000 hours.

Battery and wired operation
Being a 100% wireless moving head, the G-1 Beam offers a vast variety of options for your setup. However, the G-1 Beam can also be wired (with or without batteries). When used as a battery-driven fixture, the G-1 Beam offers an impressive 12 - 14 hours operation in typical use.

One of the big benefits of the G-1 Beam is its defined beam of light. The gobo projection is focused in a very detailed way, so the pattern is clearly visible at any moment. Even when 2.8º is the native aperture in the G-1 Beam, it is also possible to obtain a narrower beam angle by using the physical pseudo-zoom adjustable down to 0.3º. A shake effect is also available for all gobo designs.

Special movement features
The G-1 Beam includes a fast endless pan movement feature, which truly expands the possibilities when programming the fixture. Furthermore, with the G-1 Beam, SGM has introduced a patent pending position pre-set programming. Thanks to this feature, it is possible to program up to nine internal pan / tilt presets that can be combined with up to eight internal standalone programs.

IP rating
The durable IP65-rating of the G-1 Beam luminaire ensures that the fixture is kept free of externally induced particles and liquids on internal optics and light sources, such as smoke fluid, dust, dirt, airborne pollution, and humidity. Thereby, the need to clean optics or gobos is eliminated and no internal corrosion will occur. It is ideal for outdoor applications, while being a sustainable and long-lasting choice for indoor events and installations as well.

The internal built-in dehumidifier protects this fixture from moisture, pollution and any other factors that can generate corrosion. The patented SGM dehumidification not only removes humidity but also prevents oxidation and condensation, while a gore-tex membrane equalizes internal pressure to prevent leaks. Learn more about dehumidification

The G-1 Beam delivers no less than 53244 luxes at 3m, which is a staggering light output for a LED fixture of this size. It gives the necessary brightness to create tight mid-air beams and sharp effects, while keeping a good f-stop for cameras and a 0.3 m minimum safety distance to objects.

Thermal management
To achieve optimum performance of the LEDs at all times, this bright and accurate luminaire is optimized to manage heat impact through SGM's unique thermal management technology. The technology consists of a uniquely designed body and heat sink, which ensures optimal cooling of the LED chips. Additionally, the special aluminum alloy and surface treatment ensures maximum heat dispersion.
Like all SGM LED products, the G-1 Beam consists of SGM's superior thermal management technology and tested under extreme hot and cold conditions, which ensures that the LEDs always operate within safe parameters. Learn more about SGM thermal management

Mounting options
The G-1 Beam comes in two varieties: with or without the base unit. With the base, usability is diverse since batteries can be inserted, and thus positioning is independent from any power source proximity. Without the base, the G-1 Beam can be mounted onto the ceiling, in a rig or in a wall mount. In this case, the base can be placed remotely as power supply, or the head can be powered through an external power supply.


Included SGM technologies

This thermal management techonology provides Advaced Temperature Control monitored via sensors and software, keeping optimal LED junction temperatures, and ensuring maximum reliability for long-term use. The ThermalDriveTM system includes cutting-edge heat removal via passive thermal tecniques and active forced-air cooling (depending on the product), specifically designed to maintain LED efficiency while extending fixture's lifetime.

SGM uses Full Range Calibration in all LED fixtures over CIE space and black body curve, measured via spectrometer and SGM Illumination Lab software. To provide the best user experience, SGM's Color Match procedure ensures accurate wavelength reproduction within the product range via colored LEDs, dichroic filters, or CMY mixing (depending on the product); all of them specified to match the SGM color palette.


Optical Data
Focus Motorized
LED expected lifetime (L70) 50,000 hours
Lightsource High-power white LED (6,500K)
Native lens options 2.8°
Pseudo zoom range 0.3°
Color temperature 6500K
Efficacy 14 lm/W
Lux @ 10m 4792 lux
Lux @ 3m 53244 lux
Lux @ 5m 19168 lux
Maximum beam angle 2.1 °
Maximum field angle 2.9 °
Native beam angle(s) 0.3° (Aperture pseudo zoom)
Color options Black - RAL 9004
Custom color - Any RAL
White - RAL 9010
IP class IP65
Lens material AR-coated glass
Material Aluminium
Net dimensions L x H x W 219 x 382 x 255 mm
Net dimensions L x H x W (inches) 8.6 x 15.1 x 10 inches
Net weight 8.9 kg (19.6 lbs)
Built-in macro effects 50 macros
Color calibration White calibration with SGM Color Match selection
Color wheel 14 colors + open
Continuous scroll CW & CCW
Split color
Dimming Smooth fade in, gamma corrected curve
Gobo wheel (1) Two oscillation gobo effect areas
Gobo shake
Continuous scroll CW & CCW
19 gobos + 2 times open
Pan Endless
Pan modes 360°
360° Shortest path
Continuous CCW
Continuous CW
Strobe Ultra-high-speed strobe effects
Tilt 240°
DC voltage, nominal 24 VDC
Electrical protection Overload protection with automatic recover
Input voltage, nominal 100 - 240 VAC; 50 / 60 Hz
Max inrush current 230VAC 35 A
Max power consumption 50 W
Power Supply Unit Auto-ranging electronic switch-mode
Standby power consumption 7 W
Programming and Control
16-bit control Dimmer, pan and tilt
Cabled DMX 5 pin XLR input/output
DMX channels 12
DMX modes 1
Protocol CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
Wireless RDM
Setting and addressing Control panel
OLED graphical display / 4 buttons
Standalone mode
Standalone mode 8 Internal Standalone Programs
9 Internal Pan/Tilt Presets
Wireless DMX Lumen Radio with RDM
DMX data in/out IP65 XLR 5-pin cable, 0,2 m (7.8 in)
IP65 XLR 5-pin connector, Male
Power Power input connector
Mounting point 2 quarter-turn locking points for one Omega bracket
Orientation Any
Rigging possibilities Hanging (Omega Bracket included) or ceiling/wall mount (optional)
Safety features 2 attachment points for safety wire
Minimum distance to combustible materials: 0.3 meter (11 in).
Cooling Passive
Humidity (max.) 98 %
Temperature range, battery operating -20°C to 50°C
Temperature range, battey Start-up -20°C to 50°C
Temperature range, charging 10°C to 45°C
Temperature range, operating -40°C to 50°C
Temperature range, operating max 50 °C
Temperature range, operating min -40 °C
Temperature range, start-up -20°C to 50°C
Temperature range, storage -20°C to 25°C
Thermal protection Automatic overtemperature protection
Total heat dissipation, max power 170.6 BTU per hour
Total heat dissipation, standby 23.9 BTU per hour
Included items
Included items 2 m IP66 power cable pigtail
1 Omega bracket with quarter-turn fasteners
Safety instructions and installation quick guide
Battery capacity (non-stop) 7 - 9 hours
Battery capacity (typical use) 12 - 14
Battery charge time up to 100% 12 - 16 hours
Battery charge time up to 75% 8 - 12 hours
Battery option YES
Battery status Battery level indicator
Battery type Lithium-Ion battery
Memory effect 85% battery capacity after 500 full charge cycles
