PROLIGHTS ECLIPSE FS ELLIPSOIDAL "LEKO" (REQUIRES LENS TUBE)
Shipping calculated at checkout.
PROLIGHTS ECLIPSE FS ELLIPSOIDAL "LEKO" (REQUIRES LENS TUBE)
$1,575.00
$1,417.50
/
PROLIGHTS ECLIPSE FS ELLIPSOIDAL "LEKO" (REQUIRES LENS TUBE)
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
){kind=link}

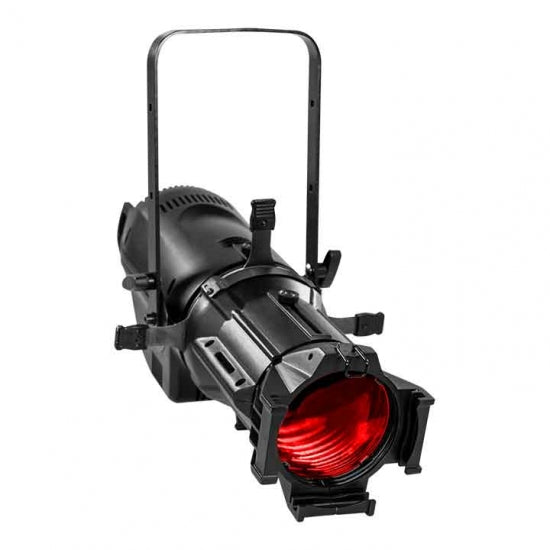

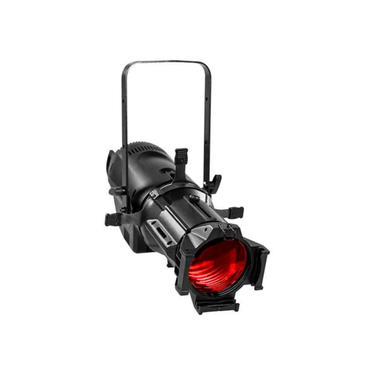

PROLIGHTS ECLIPSE-FS is a full-colour LED ellipsoidal designed to deliver a full range of pastels, whites or saturates smoothly, consistently, and both with or without gobos. The ECLIPSE-FS’s RGB + Lime LED engine has been specially engineered to provide a full spectrum and full output in the most discerning environments, regardless of which role the ECLIPSE-FS is playing.
Features:
- RGB + Lime ellipsoidal LED with HD dimming and extensive colour palette.
- High definition optics for sharp focus and gobo projection.
- Accepts industry standard accessories.
SPECIFICATION
LIGHT SOURCE
- Source: 91x3W RGB + lime LEDs
- CCT: @full - 5,400K
- CRI: @full in STUDIO mode - 82 / @full in HB mode - 70
- Luminous flux: (26°) 6,262 lm at STUDIO mode - 6,524 lm at HB mode
- Lux: (14°) 8,090 lx - (19°) 7,020 lx - (26°) 4,960 lx - (36°) 2,610 lx - (50°) 1,190lx @3 m full
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: optional 14° / 19° / 26° / 36° / 50°
- Lens type: high-quality glass lens optics
COLOUR SYSTEM
- Colour mixing: RGB + lime / full colour
- CTC: CTC control through dedicated DMX channel
- White presets: 2,700 K ~ 10,000K
- Colour wheel: virtual colour wheel with presets
- Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
- Gobo size: B
- Static colour mode: selection of static colour
- Manual colour mode: manual adjustment of colour
- Special features: HB mode, STUDIO mode, SILENT mode
BODY
- Body: sturdy die-cast aluminium body conceived for long-time durability
- Body colour: black
CONTROL
- Protocols: DMX512, RDM
- DMX channels: 1 / 2 / 3RGB / 4RGBL / 5RGBL / 3 / 4 / 5 / 8 / 13 ch - Tungsten / 3,200 K / 5,400 K / 6,500 Kchannel
- RDM: RDM ready for fixture remote monitor and settings
- Display: black OLED high resolution display
- Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
- Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Strobe / shutter: 1 - 25 Hz, electronic
- Battery backup: battery backup for user operation without connecting to the main power
- Operating temperature: -10° ~ +45°
- Flicker: flicker free operation
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Power supply: 100-240 V – 50/60 Hz
- Power consumption (at 230 V): 260W
- Power consumption (at 120 V): 260W
- Output (at 230 V): 9 units on a single power line
- Output (at 120 V): 4 units on a single power line
PHYSICAL
- Cooling: low noise fan
- Sospension and fixing: hanging bracket suitable for safe hanging and positioning
- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
- IP rating: 20
- Dimensions (WxHxD): 265x259x540mm / 10.43''x10.2''x21.26''
- Weight: 10kg / 22.05lbs
