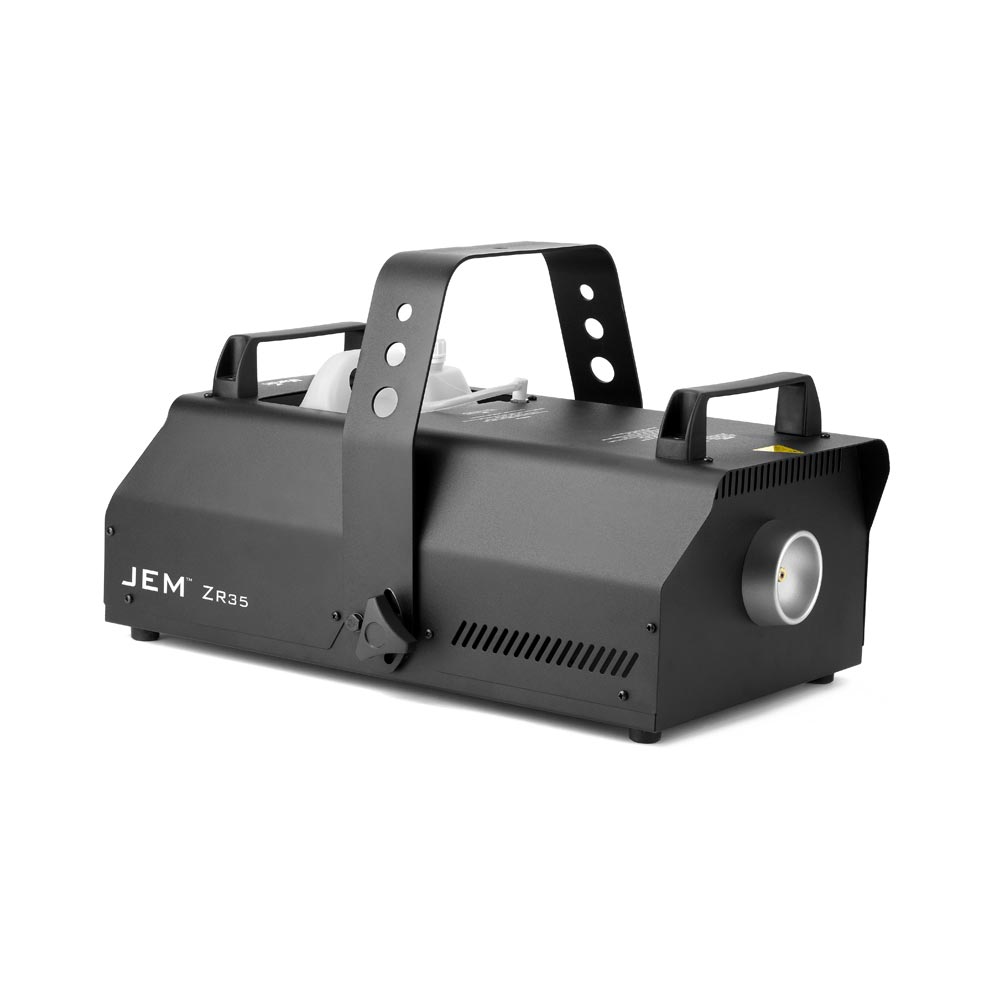

MARTIN JEM ZR35 1500 WATT PROFESSIONAL FOG MACHINE

  • $1,145.00
    Unit price per
Shipping calculated at checkout.


The JEM ZR35 is a mid-sized fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its powerful 1500 W heat exchanger, the JEM ZR35 produces a fantastic peak output ideal for mid to large-sized venues and stages in both install and rental markets.The rugged yet weight optimized JEM ZR35 also features variable output control for more subtle effects and is fully up-to-date with and integrated digital remote control, DMX and RDM.The entire JEM ZR range is compatible with a wide range of JEM Pro-Fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.

  • High endurance mid-sized fog machine
  • Exceptional performance and output
  • Various control options via digital remote, DMX and RDM

    FEATURES

    • Robust roadworthy design
    • Integrated Digital Remote Control
    • DMX with RDM
    • Floor standing or truss mounting (hanging bracket included)
    • 1500 W heat exchanger
    • 800 m³ (28,252 ft.³) per minute fog output
    • Variable output control for subtle effects
    • Continuous effect output
    • Compatible with a wide range of JEM Pro-Fog fluids
    • 4 l Fluid reservoir with quick-connect fitting (compatible with 5 l bottle)
    • Easy external fluid connection
    • Optional Ducting Kit

      SPECIFICATIONS

      PHYSICAL
      Length: 590 mm (23.3 in.)
      Width: 395 mm (15.6 in.)
      Height: 264 mm (10.4 in.)
      Height with hanging bracket: 333 mm (13.9 in.)
      Weight, dry: 15.1 kg (33.3 lbs.)
      Weight, filled: 19.1 kg (42.1 lbs.)

      PERFORMANCE
      Coverage volume: 800 m3 (28,252 ft3) per minute
      Fluid consumption (max.): 140 ml per minute
      Maximum operating time, maximum output, 4 l of fluid: 1.25 hours
      Ready time: 9-minutes
      Continuous effect output

      CONTROL AND PROGRAMMING
      Control options: Integrated digital remote control, DMX, master/slave link mode
      Control parameters: Continuous or timer-controlled output
      Fog: Variable output control, 0-100%
      DMX channels: 1
      External fluid control: Fluid sensing
      DMX compliance: ANSI E1.11 - USITT DMX512-A
      RDM compliance: ANSI/ESTA E1.20 RDM

      CONSTRUCTION
      Housing: Steel and aluminum
      Color: Black
      Heat exchanger: 1500 W, thermally protected
      Fluid pump: Oscillating piston, high pressure
      Fluid management: Fluid out sensing, sealed for transportation
      Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
      Remote Control: Integrated digital remote with 3 m (9.84 ft.) cable, 3-pin XLR connector
      External Fluid Control: Fluid sensing
      Hanging bracket: Integrated yoke with safety attachment point

      INSTALLATION
      Mounting: Standing or hanging
      Orientation: Up to +/-40° from horizontal
      Clearance around machine: 100 mm (4 in.)

      CONNECTIONS
      AC Power: Neutrik PowerCON TRUE1
      DMX, link mode in/out: 5-pin locking XLR
      Remote control: 3-pin locking XLR
      Firmware: AVR socket

      ELECTRICAL
      US Model:

      AC power: 100-130 V nominal, 50/60 Hz
      Main fuse: 15 AT (slow blow), 125 V
      Typical power and current: 1450 W, 12.1 A*

      *Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

      THERMAL
      Maximum ambient temperature (Ta max.): 40° C (104° F)
      Minimum ambient temperature (Ta min.): 5° C (41° F)
      Exterior surface temperature, steady state: 30° C (86° F)
      Maximum nozzle temperature: 290° C (554° F)

      APPROVALS
      EU safety: EN 60 335-1+A15, EN62233
      EU EMC: EN 61000-6-3
      EU immunity: EN 61000-6-1
      US safety: UL 998
      Canadian safety: CSA C.22.2 No. 104.01
      Australia/NZ: RCM (pending)

      INCLUDED ITEMS
      Fluid reservoir, 2.5 l: P/N 34300521
      JEM ZR Series Integrated Digital Remote Control: P/N 92765048
      Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043
      Power input cable, US, 10 A, PowerCON TRUE1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N 11501044
