• $12,900.00
    Unit price per
Shipping calculated at checkout.

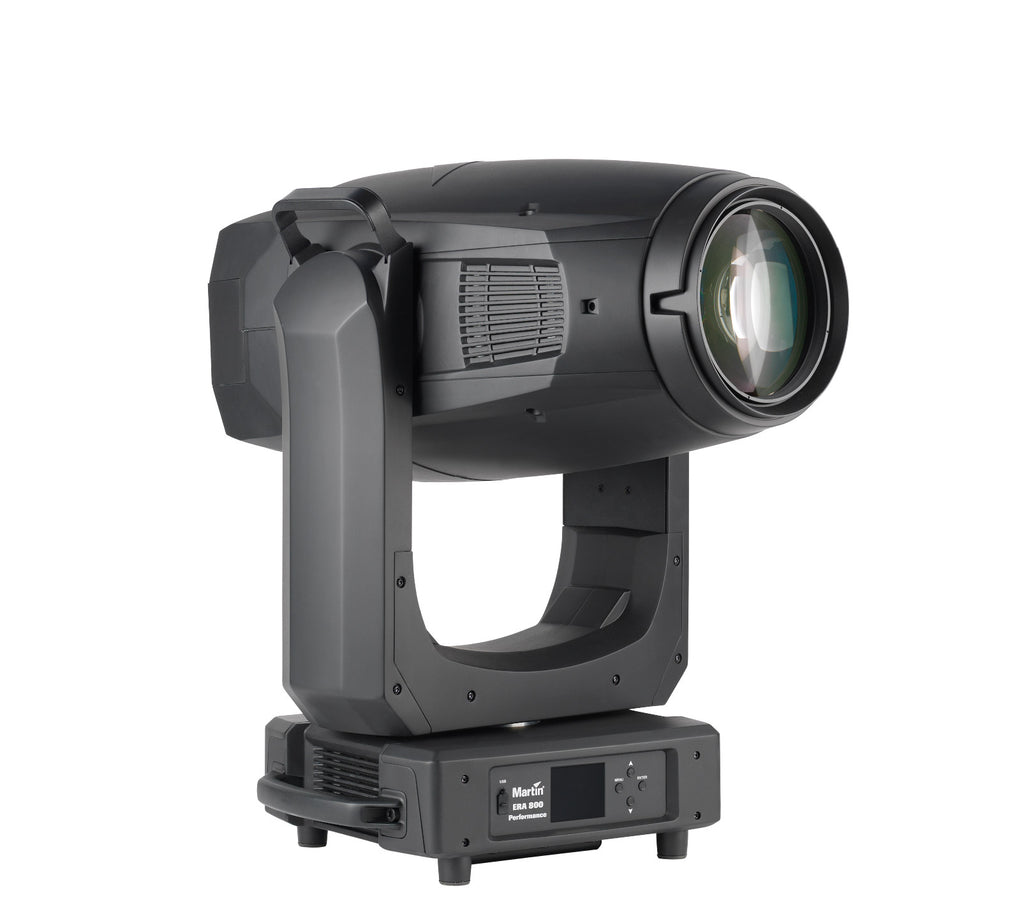

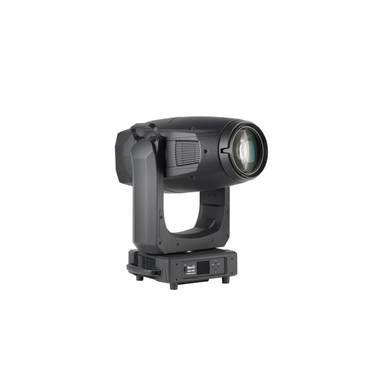

Designed to fulfill the demand for an ultra-bright, compact, tour-worthy moving head, the Martin ERA 800 Performance combines a feature-loaded, rugged, yet cost-efficient profile for entertainment and rental applications.

It features a highly efficient, super-bright 800W white LED engine that produces a bright, sharp 6,500K gobo projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, full CMY color mixing and separate color wheel, variable color temperature control, animation wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the two included rotating prisms and soft and heavy frost filters.

The ERA 800 Performance includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage.

Perfect for big, stadium-sized stage and live productions, the Martin ERA 800 Performance is ideal for a long list of scenarios, requiring an extremely bright, yet truly versatile LED profile that offers near limitless design and usage potential.


  • Bright 800 watt / 6,500K LED light source
  • 34,000 lumen output
  • Crisp optics with flat field
  • 1:8 Fast zoom
  • Fat beam look with 160 mm front lens
  • CMY color mixing - Vibrant color mixing with a superior palette of colors matching the MAC range
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • 6-slot color wheel –for added color choice and split color effects
  • Full Curtain Framing blades with +/- 60° rotation of entire system for flexible shape generation
  • 6 rotating/indexing gobos – All renowned Martin glass gobos
  • 7 static gobos for great morphing effects
  • Animation wheel with continuous bi-directional rotation
  • Iris – Fast and tight iris
  • Two prisms - 4-facet and linear – rotation and index control for dynamic effects
  • Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge.
  • Heavy frost – for wash light effects
  • Compact and low weight design


Length: 431 mm (17in.)
Width: 290 mm (11.4in.)
Height: 801 mm (31.5in.)
Weight: 41kg (90.4lbs)

Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
Electronic dimming: 0 - 100%, four dimming curve options
Color mixing: CMY, independently variable 0-100%
Color temperature control: Variable 6500 - 2700 K
Color wheel: 6 color filters plus open
Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction
Rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 7 gobos plus open, wheel indexing, rotation and shake
Iris: 0-100%
Zoom: Motorized
Focus: Motorized
Framing: Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position.
Prism: 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)
Frost: Soft frost effect and heavy frost effect
Pan: 540°, coarse & fine control and speed
Tilt: 260°, coarse & fine control and speed

Control options: DMX
16-bit control: Dimming, pan and tilt
Setting and addressing: Control panel with backlit LCD display
DMX channels: 42
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485

Front lens diameter: 160 mm
Zoom range: 7° - 56° (1:8)
Light source: 800W LED engine
Minimum LED lifetime: 20000 hours (to >70% luminous output)*
*Manufacturer´s figure obtained under manufacturer´s test conditions

Light engine luminous output: 70000 lumens
Fixture luminous output: 34000 lumens
CRI (Color Rendering Index) : >70
CCT: 6500 Kelvin
LED refresh rate : 3600 Hz

Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP 20
Gobo diameter: 30.0mm +/-0.2mm (+/- 0.008 in.)
Maximum image diameter: 25mm (0.98 in.)
Gobo thickness, maximum: 1.1 mm (0.04 in.)

Mounting points: Two quarter-turn brackets for rigging
Orientation: Any

AC power in, thru: Neutrik powerCON TRUE1
DMX data in/out: 5-pin locking XLR

AC power: 100-240V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Idle Consumption: 94 W, all effects static, zero light output
Half-cycle RMS inrush current at 230 V, 50 Hz: 52.3A

120 V, 60 Hz: 10.8A, 1270W, PF 0.99
230 V, 50 Hz: 5.5A, 1240W, PF 0.97
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.

Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 0° C
Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
Total heat dissipation (calculated, +/- 10%): 4340 BTU/hr.

EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)

2 x Omega brackets for rigging clamp attachment
