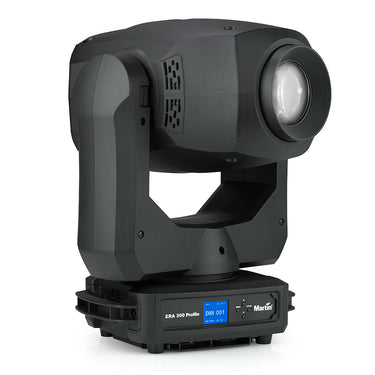

MARTIN ERA 300 PROFILE

  • $4,475.00
    Unit price per
Shipping calculated at checkout.


COMPACT LED MOVING HEAD PROFILE WITH CMY COLOR MIXING

The Martin ERA 300 Profile is a very compact profile fixture with an extremely efficient 260W white LED engine that produces a sharp gobo projection with a flat field and more output than typically associated with similar-sized and featured fixtures. This modern, everyday workhorse is designed to fit anywhere, is easy to handle and rig, takes up less truck space, and boasts professional features, including CMY color mixing and 1:2 zoom and 9,500 lumens of output. Additional features include electronic dimming and strobe; color wheel; two layers of gobos, including rotating gobos; iris; rotating prism and pan/tilt.

The electronic dimming feature ensures extremely fast strobing, instant intensity control and the ability to maintain a consistent flat field down to zero percent. Onboard CMY color mixing offers wide-ranging versatility from subtle pastels to deep, vibrant colors, as well as fast transitions and smooth fades. And, with 13 to 28 degrees of zoom, the ERA 300 Profile is perfect for various trim heights and is wide enough to ensure great coverage on smaller stages.

The Martin ERA 300 Profile also delivers increased ROI with minimal maintenance. The steady, stable LED source eliminates worries of lamp aging, loss of output, shifts in color temperature, and fans sucking dirt through the optical path. And, the modular design makes maintenance extremely safe, quick, and easy. The ERA 300 Profile is built for the road and is ideal for small and mid-sized concerts and touring, live TV productions, corporate shows, cruise lines and houses of worship.

FEATURES

  • 260 watt / 6,500K LED light source
  • 9,500 lumen output
  • Full feature set including CMY color mixing and 1:2 zoom
  • Crisp optics with flat field
  • Very compact and low weight design

SPECIFICATIONS

PHYSICAL
Length: 375 mm (14.8 in.)
Width: 217 mm (8.5 in.)
Height: 564 mm (22.2 in.)
Weight: 17kg (38lbs)

DYNAMIC EFFECTS
Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
Electronic dimming: 0 - 100%, four dimming curve options
Color mixing: CMY, independently variable 0-100%
Color wheel: 9 color filters plus open
Beam effects: Rotating three-facet prism
Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake
Iris: 0-100%
Zoom: Motorized
Focus: Motorized
Pan: 540°, coarse & fine control and speed
Tilt: 260°, coarse & fine control and speed

CONTROL AND PROGRAMMING
Control options: DMX
16-bit control: Dimming, pan and tilt
Setting and addressing: Control panel with backlit LCD display
DMX channels: 21
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485

OPTICS
Zoom range: 13° - 28°
Light source: 260W LED engine
Minimum LED lifetime: 20,000 hours (to >70% luminous output)*
*Manufacturer´s figure obtained under manufacturer´s test conditions.

PHOTOMETRIC DATA
Light engine luminous output: 20,000 lumens
Fixture luminous output: 9,500 lumens
CRI (Color Rendering Index) : >70
CCT: 6500 Kelvin

CONSTRUCTION
Housing: High-impact flame-retardant thermoplastic
Color: Black/White
Protection rating: IP20

GOBOS
Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
Maximum image diameter: 19.0 mm (0.75 in.)
Gobo thickness, maximum: 1.1mm borosilicate glass

INSTALLATION
Mounting points: Two quarter-turn brackets for rigging clamps
Orientation: Any

CONNECTIONS
AC power in, thru: Neutrik powerCON TRUE1
DMX data in/out: 3-pin & 5-pin locking XLR

ELECTRICAL
AC power: 100-240V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Fuse: T 6.3A

TYPICAL POWER AND CURRENT
120 V, 60 Hz: 3.13A, 374W, PF 0.999
230 V, 50 Hz: 1.62A, 362W, PF 0.993
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

THERMAL
Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 0° C

APPROVALS
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM

INCLUDED ITEMS
Power cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug
Omega brackets for rigging clamp attachment
