HIGH END SYSTEMS USB DMX WIDGET
Shipping calculated at checkout.
HIGH END SYSTEMS USB DMX WIDGET
$870.00
$696.00
/
HIGH END SYSTEMS USB DMX WIDGET
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

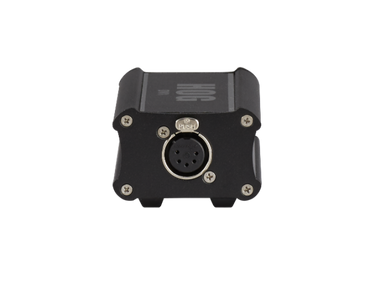

The USB DMX Widget provides a single universe of DMX-512 output from any Hog 4 console or Hog 4 PC. Up to eight USB DMX Widgets may be connected at once via a USB Hub to provide eight full universes of DMX-512 to the Hog 4-18, Full Boar 4 and Hog 4 PC. Four DMX Widgets can be connected to the Road Hog 4.
With Hog 4 PC, attaching USB DMX Widgets unlocks the corresponding universe of Art-Net and sACN.
FEATURES
- USB connection to any Hog 4 console as well as Hog 4 PC
- Rugged, stackable aluminum housing
- Single DMX-512 output on 5-pin XLR connector
- Supports up to 512 output channels
- One USB input connector providing power
- Multiple USB DMX Widgets can be connected via USB Hub
- Kensington security slot
- Storage Temperature 20-60°C / 0-140°F
- Compliance: ETL, CETL, CE
WEIGHTS AND DIMENSIONS
- Width: 65mm / 2.5"
- Depth: 106mm / 4.2"
- Height: 45mm / 1.8"
- Weight: 0.34kg / 0.75lb
WIDGET COMPATIBILITY
| DMX Widget | DMX Super Widget | DMX Super Duper Widget | MIDI/LTC Widget | |
| Hog 4 | 8 | 2 | 1 | 1 |
| Full Boar 4 | 8 | 2 | 1 | 1 |
| Road Hog 4 | 4 | 1 | 1 (max 4 universes) | 1 |
| HedgeHog 4 | 2 | 1 (max 2 universes) | 1 (max 2 universes) | 1 |
| HedgeHog 4X | 4 | 1 | 1 (max 4 universes) | 1 |
| Rack Hog 4 | 8 | 2 | 1 | 1 |
| Hog 4 PC | 12 | 3 | 1 |
