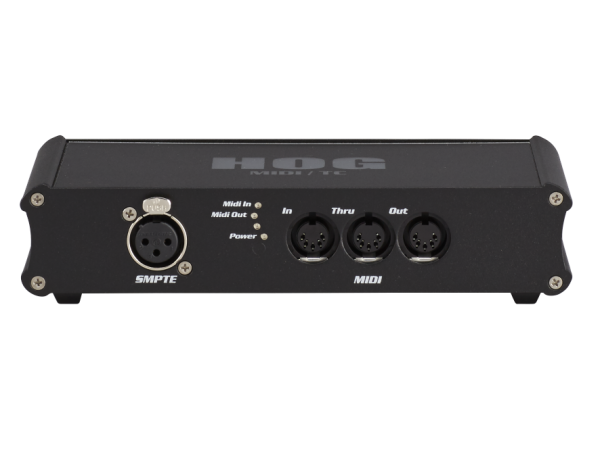

HIGH END SYSTEMS USB MIDI/LTC WIDGET
USB MIDI/LTC WIDGET
The USB MIDI/LTC Widget provides a single Linear Timecode input and MIDI in/out/thru for any Hog 4 OS console or Hog 4 PC.
You are able to connect up to eight MIDI/LTC widgets to your console or each DMX Processor 8000, bringing multiple timecode sources to the console.
FEATURES
- USB connection to any Hog 4 console as well as Hog 4 PC
- Rugged, stackable aluminum housing
- One USB input connector providing power
- One Linear Timecode (LTC/SMPTE) input on 3 pin XLR connector
- MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
- Multiple USB MIDI/LTC Widgets can be connected via USB Hub
- Kensington security slot
- Storage Temperature 20-60°C / 0-140°F
- Compliance: ETL, CETL, CE
WEIGHTS AND DIMENSIONS
- Width: 198mm / 7.8"
- Depth: 106mm / 4.2"
- Height: 45mm / 1.8"
- Weight: 0.5kg / 1.1lb
WIDGET COMPATIBILITY
| DMX Widget | DMX Super Widget | DMX Super Duper Widget | MIDI/LTC Widget | |
| Hog 4 | 8 | 2 | 1 | 1 |
| Full Boar 4 | 8 | 2 | 1 | 1 |
| Road Hog 4 | 4 | 1 | 1 (max 4 universes) | 1 |
| HedgeHog 4 | 2 | 1 (max 2 universes) | 1 (max 2 universes) | 1 |
| HedgeHog 4X | 4 | 1 | 1 (max 4 universes) | 1 |
| Rack Hog 4 | 8 | 2 | 1 | 1 |
| Hog 4 PC | 12 | 3 | 1 | 1 |
