HIGH END SYSTEMS FULL BOAR 4

  • $23,660.00
    Unit price per
  • Save $2,340
Shipping calculated at checkout.

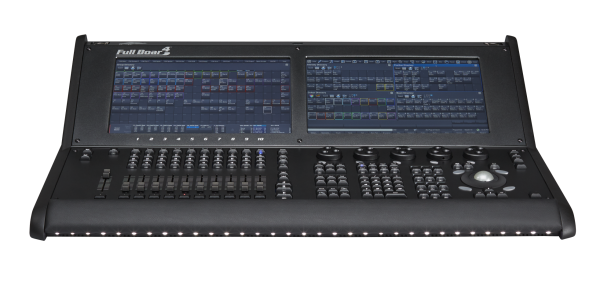

FULL BOAR 4

High End Systems’ Full Boar 4 is versatile enough to handle everything from a corporate show to a full stadium gig. The Full Boar 4 offers all the power of the flagship Hog 4, but in a more compact and affordable package, with sleek lines, raked screens, and that familiar layout.

Full Boar 4 provides two 15.6-inch multi-touch monitors and two additional video outputs. Four on-board DMX universes drive the rig, and two gigabit Ethernet ports are provided for Art-Net, sACN, and console networking. Full Boar 4 satisfies the demanding programmer, and brings the package in on budget.

FEATURES
  • Robust Hog 4 OS operating system
  • Hog-Net etherCON connector
  • Fixture-Net etherCON connector
  • Unlimited simultaneous crossfades
  • Internal solid-state hard drive
  • Two internal 15.6-inch 10-point touchscreens
  • Up to two external DVI-I monitors/touchscreens supported
  • 10 motorized playback faders
  • Motorized Grand Master
  • Dedicated DBO toggle key
  • Five expanded-wheelset encoders
  • 12 user-assignable function keys with associated LCD
  • Tri-axis backlit trackball with rotary encoder and four configurable buttons
  • Kensington security slot
  • Integrated dimmable white lap work light
  • Integrated dimmable blue vent light
  • Two dimmable white/blue desk lights included
  • Two USB flash drives for show storage and console recovery included
  • Dust cover included
  • Custom road case included
  • Compliance: ETL, CETL, CE
CONNECTIVITY
  • Local output processing: 12x universes (6144 output channels)
  • Local DMX-512 outputs: 4x Neutrik 5-pin XLR
  • Expandable DMX-512 outputs via USB DMX Widgets
  • Local Art-Net and E1.31/sACN outputs: 1x 1GB/s Ethernet port
  • Unlimited DMX-512, Art-Net and E1.31/sACN universes via HogNet-connected DP8Ks
  • LTC/SMPTE input via 3-pin XLR
  • MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
  • Expandable MIDI and LTC inputs via USB MIDI/LTC Widgets
  • Connectivity with visualizers via Fixture-Net (Art-Net or E1.31/sACN, unrestricted by local output capacity)
  • OSC (Open Sound Control) for remote control and integration
  • Supports USB playback and expansion Wings
  • USB 2.0 ports: 4 rear
  • USB 3.0 ports: 1 top
ELECTRICAL
  • Mains power: 100-250VAC, 50/60Hz, max 110W
  • Mains connector:  IEC320 C13
  • Fuse: 1x 5x20mm 5AT fuse
WEIGHTS AND DIMENSIONS
  • Width: 902mm / 35.5"
  • Depth: 610mm / 24.0"
  • Height: 244mm / 9.6"
  • Weight: 20.4kg / 45lb
