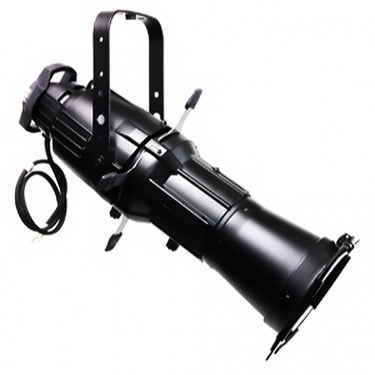

ETC SOURCE 4 ELLIPSOIDAL 14 DEGREE "LEKO"

  • $856.00
    Unit price per
  • Save $72
Shipping calculated at checkout.


The ellipsoidal fixture that changed the lighting industry

There's only one Source Four - the ellipsoidal fixture that changed the lighting industry. Source Four combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses, for the coolest beam on the market. That means your gels, patterns and shutters last longer and your performance space stays cooler.

No other light offers such optical brilliance. Source Four's revolutionary technology gives you a clean white beam for unequaled imaging, crisp pattern projection, and a bright, even field. The EDLT lens tube option for 19º, 26º, 36º and 50º field angles makes the Source Four even better for ultra-crisp, high-contrast gobo projections.

Product Features
  • 5º, 10º, 14º, 19º, 26º, 36º, 50º, 70º and 90º field angles
  • Rated up to 750W
  • Super-efficient HPL lamp
  • Faceted dichroic reflector removes 90% of IR heat from beam
  • Interchangeable lens tubes
  • Rotating barrel ± 25º
  • Three-plane stainless-steel shutter blade assembly
  • Tool-free lamp adjustment
  • Insulated rear handle
  • Rugged die-cast aluminum construction
  • Supports Dimmer Doubling™ (North America only)

OPTICAL
• Re-optimized optical system for improved photometric
performance and field uniformity
• Projector-quality, high contrast aspheric lens
• Optional enhanced definition lens tube available for even
higher image quality
• Faceted borosilicate reflector with dichroic cold mirror coating
removes greater than 90% infrared radiation (heat) and
reflects greater than 95% of visible light
• Reflector secured with anti-vibration shock mounts
• Lens(es) secured with anti-vibration shock mounts
• Tool free, positive locking X, Y and Z lamp centering
adjustments, unaffected by relamping
• Beam edge continually adjustable hard-to-soft
• Interchangeable lens barrels permit selection of 5˚, 10˚, 14°,
19˚, 26˚, 36˚, 50˚, 70°, and 90° field angles as well as 19˚, 26˚,
36˚, and 50˚ EDLT lenses
