ETC COLORSOURCE 20AV & 40AV CONSOLES

  • $2,880.00
    Unit price per
  • Save $720
Shipping calculated at checkout.

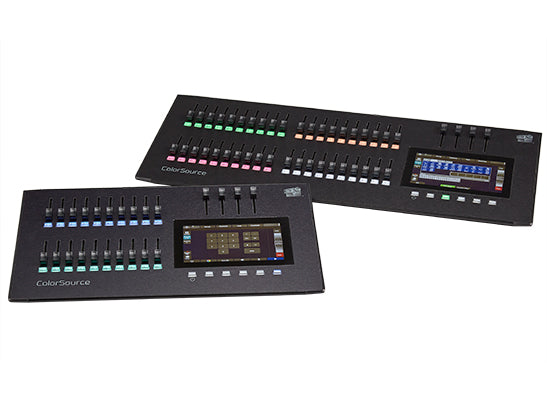

ColorSource 20AV and ColorSource 40AV

ColorSource AV consoles retain all standard ColorSource features, but add sACN and Art-Net networking, OSC, audio input/output and an HDMI video connection.

Use the video output for an external status display monitor or as part of an integrated AV setup with sound and image cues. Use the groundbreaking Video Toy for immersive live media effects – busk along with the band, or let the sound-to-light feature take over!

ColorSource AV consoles also support Amigo, a web-based remote focus tool.

With ColorSource consoles, setup and programming is a breeze! From patching to performance, ColorSource consoles enable you to navigate and program quickly. The multi-function onboard touchscreen provides not only a customizable stage map but also color and parameter controls, a full palette system, effects manipulation, and the Playback Toy live busking controls.

The onboard faders can be used as direct channel controls or as playback faders. For preprogrammed shows, ColorSource consoles include comprehensive cue stack functionality. Assign additional faders as submasters, group masters, or a grandmaster.

All ColorSource consoles feature

  • 80 control channels/devices
  • 7" integrated multi-touch display
  • 4 user-definable master faders
  • 5 user-definable buttons for common commands
  • Virtual level/rate paddle
  • Cue list record and playback functions
  • Non-intensity parameter control
  • Console lockout
  • Color, Position and Beam Pallettes
  • Color, intensity, position and parameter effects
  • Intuitive color control of LEDs
  • RDM discovery & configuration
  • Onboard help system
  • "Simple Mode" operation for 4 looks
  • Playback Toy for live busking
  • Kensington Security Slot



PROGRAMMING TOOLS
• Color and white pickers
• Reference based Position, Color and Beam palettes
• Innovative touch-based parameter controls
• Auto fixture selection on fader moves
• Virtual Level/Rate wheel
• Customizable Channel display using Stage Map
• Effects (intensity, color, shape, and parameter)
• Fixture Tags for Quick Selects
• 27 Quick Select groupings
• Two independent channels
• Virtual keypad for level entry


UNIQUE FEATURES
• COLORSOURCE 20
- 80 channels / multi-parameter devices
- 20 Channel / Playback faders with color indication
- One DMX/RDM port
- One USB port
- 2 GB onboard storage for show files


• COLORSOURCE 40
- 80 channels / multi-parameter devices
- 40 Channel / Playback faders with color indication
- One DMX/RDM port
- One USB port
- 2 GB onboard storage for show files


• COLORSOURCE 20 AV
- 80 channels / multi-parameter devices
- 20 Channel / Playback faders with color indication
- Two DMX/RDM ports
- Two USB ports
- RJ45 for network (sACN, ArtNet, OSC)
- Sound-to-light playback
- HDMI® port for monitor or media playback
- “Amigo” browser-based remote
- 25 GB onboard storage for show files and media

• COLORSOURCE 40 AV
- 80 channels / multi-parameter devices
- 40 Channel / Playback faders with color indication
- Two DMX/RDM ports
- Two USB ports
- RJ45 for network (sACN, ArtNet, OSC)
- Sound-to-light playback
- HDMI port for monitor or media playback
- “Amigo” browser-based remote
- 25 GB onboard storage for show files and media
