ELATION SDC12 12-CHANNEL COMPACT DMX CONTROLLER
ELATION SDC12 12-CHANNEL COMPACT DMX CONTROLLER
$137.00
$109.00
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

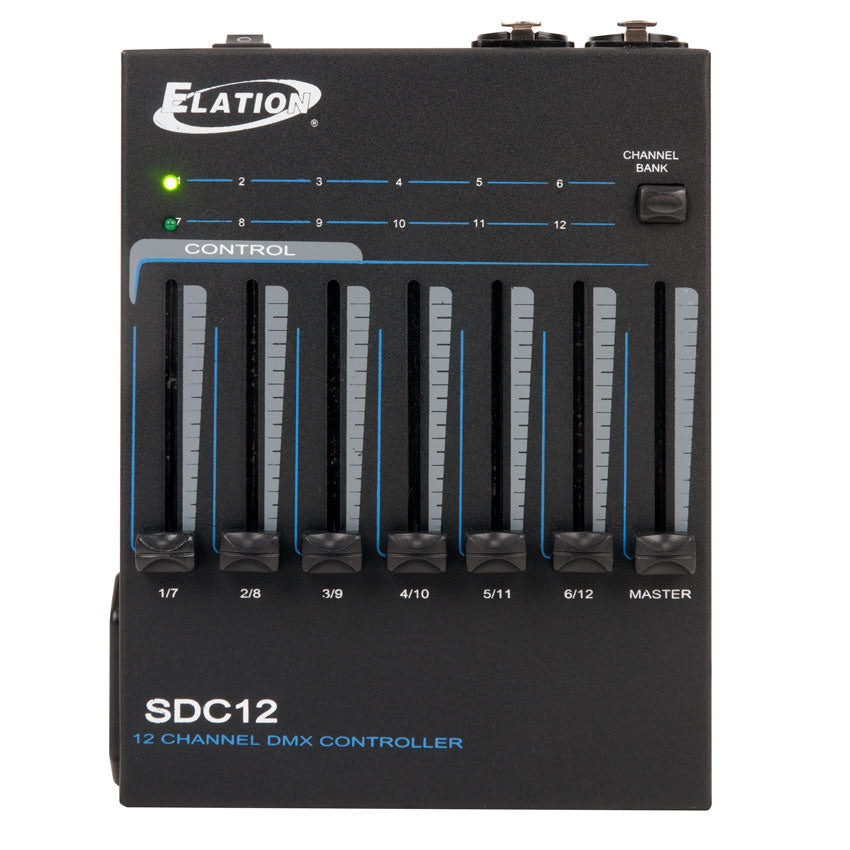

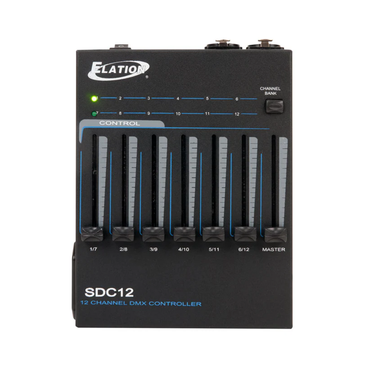

The SDC12™ features 12 DMX channels, DIP switches to set a starting DMX channel, a master dimmer fader, on/off switch, 3-pin and 5-pin XLR output, and operates via an external 12VDC power supply (included) or a 9VDC battery (not included). Great handheld device for product demos or manual control of LED or conventional fixtures. Can be wall mounted for permanent installations.
Features
12 DMX Channels Faders
Master Dimmer Fader
Portable Handheld Or Wall Mountable
Operates via 12VDC Power Supply (Included) Or
9VDC Battery (Not Included)
Specifications
CONTROL / CONNECTIONS
DIP Switches To Set Starting DMX Channel
3pin & 5pin DMX Outputs
On/Off Switch
LED Channel Bank Indicator
DC 12V Power Supply Input
SIZE / WEIGHT
Length: 7.5” (191mm)
Width: 5.9” (149mm)
Height: 1.6” (41mm)
Weight: 2.0 lbs. (0.9kg)
ELECTRICAL
DC 12V 500mA min OR 9V Battery (Not Included)
APPROVALS / RATINGS
CE | RoHs Compliant
INCLUDED ACCESSORIES
12V Power Supply
