• $7,500.00
    Unit price per
  • Save $930
Shipping calculated at checkout.

The AX5 Octo Set from Astera gives you (8) AX5 lights in a road case* with an innovative wire-free charging plate. A single True1 power cable for the charging plate is included.

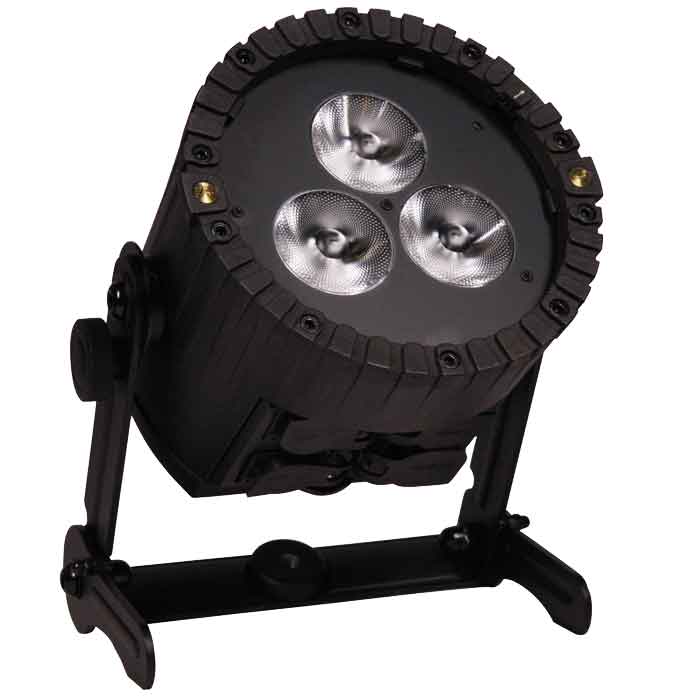

Astera AX5 TriplePAR

For those who need a powerful battery-powered fixture that can operate for up to 20 hours per charge, the Astera AX5 TriplePAR is an RGBAW LED fixture with 3 x LED emitters and a 13° beam spread. The RGBA fixture supports a color temperature range of 2480 to 7100K when controlled via the app or DMX, and features a CRI rating of up to 92. In addition, the fixture is dimmable from 100 to 0% brightness in any mode. The fixture has an integrated lithium-ion battery, which can run the fixture for up to 20 hours on a full charge.

As you would expect with an RGBAW fixture, it supports a variety of effects, including color, fire, strobe (flash), and LEE gel color matching. The fixture can be controlled via wired or wireless DMX (supports LumenRadio) as well as via the AsteraApp, or an optional IR remote. The light features a removable yoke, and an integrated pop-out Kickstand. The bracket features a 3/8" threaded hole for attaching mounting options.

Remote Control
The AX5 can be controlled remotely with an optional ARC1 IR remote controller, or by the AsteraApp for iOS or Android via Bluetooth (requires optional AsteraBox) as well as wired or wireless DMX. For wireless DMX, the fixture is compatible with all LumenRadio CRMX transmitters as well as W-DMX, G2, G3, G4, and G4S transmitters (G4 and G4S is only supported in 2.4 GHz mode).
You can also use an Astera ART3 Wireless DMX Transmitter to send DMX in the UHF frequency band, although CRMX is the recommended method.
Status Screen
An integrated status screen displays the fixture's settings and allows you to navigate the menu system for local control or for use with remotes.
  • Solid (static) Color
  • Color Fade
  • Color Chase
  • Running Lights
  • Fire Effect
  • Rainbow Effect
  • Lee Gel Effects
Flicker Control
The fixture uses PWM (Pulse Width Modulation) for dimming, and it has a default refresh rate of 599.4 Hz. The PWM rate is adjustable between 200 and 1205 Hz to match different shooting frame rates.
*Note the road case is a representation, and subject to change in appearance or specifications.
