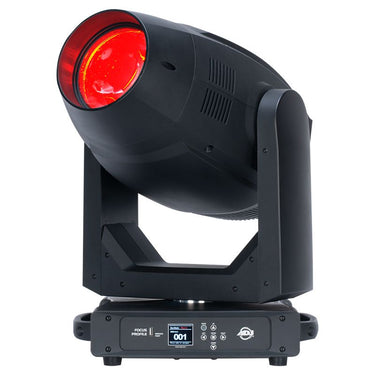

ADJ FOCUS PROFILE

  • $4,899.99
    Unit price per
  • Save $2,199.96
Shipping calculated at checkout.


The ADJ Focus Profile is a feature-packed moving head profile fixture with framing shutters. It features a potent 400W LED engine, 4 rotating framing shutters, full CMY color mixing, variable CTO (2700K to 6700K), and two prism effects.

SOURCE

400W LED Engine
20,000 Hour Average LED Life

PHOTOMETRIC DATA
20,000 Total Lumens
6,700K, >70CRI (without CRI Filter)
6,200K >87CRI (with CRI Filter)
44,330 LUX 4,118 FC @16.4’ (5m) (7.32° Beam)
1,767 LUX 164 FC @16.4’ (5m) (45° Beam)

EFFECTS
4 Rotating Framing Shutters, +/-60°,  plus shape rotation
3-Facet Circular & 4-Facet Linear Rotating Prisms
Replaceable Medium Frost Filter
Animation Wheel
Motorized Zoom (7~45-degrees)
Motorized Focus
Motorized Iris
Electronic Dimming & Strobe (1-20Hz)

COLOR
Full CMY color mixing
Variable CTO (2700K to 6700K)
Colors Wheel with 6 dichroic colors

GOBOS
(2) Gobo Wheels
#1 - (7) Rotating Glass Gobos (Interchangeable and Indexable)
#2 - (8) Static Glass Gobos

CONTROL / CONNECTIONS
(3) DMX Channel Modes (36 / 40 / 51)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3 & 5 pin XLR DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
Locking In/Out power connections
With Wired Digital Communication Network

PAN / TILT
Pan: 540-degrees
Tilt: 270-degrees
Pan & Tilt Locks

SIZE / WEIGHT
Length: 15.7" (400mm)
Width: 10.2" (259mm)
Vertical Height: 26.1” (664mm)
Weight: 61.2 lbs. (27.75kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 560W
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
Max housing temperature: 136°F (58°C)

TECHNICAL DATA
DB Rating @ 3ft.: 49dB
BTU: 0.53
BTU/H: 1,909.60

APPROVALS / RATINGS
CE | ETL (Control #4010765)
IP20

INCLUDED ACCESSORIES
(1) Power cable
(2) Omega brackets
(1) Heavy frost filter (JMJ03)

Specifications and documentation subject to change without notice.
