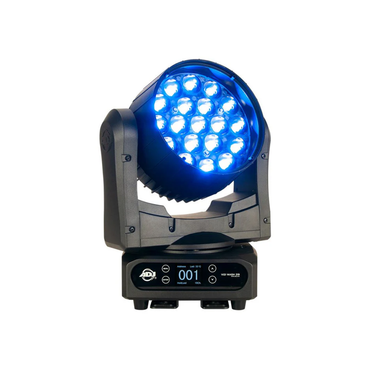

380W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees), 19x 20W Quad (RGBW / 4-IN-1) LEDs and 3 or 7 zones of LED ring control.
Optical:
• 19x Osram 20W RGBW (4-IN-1) LEDs
• 20,000 Hour Average LED Life
• LUX @ 5M: 9960 lux @ 10-degrees; 694 lux @ 60-degrees
Effects:
• 3-zone or 7-zone Ring Control with Color Macros
• Variable Strobe & Pulse effects
Connections:
• Seetronic locking power In/Out to daisy chain power
• Daisy chain up to 5 fixtures @ 120V, 11 fixtures @ 230V
• 3-pin & 5-pin In/Out DMX Connections
• With Wired Digital Communications Network
Control:
• Motorized Zoom: 10 ~ 60-degrees
• Control: DMX-512 & RDM (Remote Device Management)
• 8 DMX Channel Modes: 13 / 14 / 17 / 18 / 29 / 30 / 45 / 46
• 64 built-in Color Macros
• Color display with touch buttons
• 3 or 7 zones of LED ring control
• Smooth 0-100% Dimming
• Fine 16-bit Dimming
• 6 Dimmer Curve modes
• Fine 16-bit Zoom control
• Built-in USB software upgrade port
• Various Strobe speeds (1-40Hz)
• Pan: 540-degree (plus fine 16-bit pan)
• Tilt: 270-degrees (plus fine 16-bit tilt)
Electrical:
• Multi-voltage operation: 110-240V, 50-60Hz
• Power Consumption: 276W Max
Dimensions / Weight:
• Dimensions (LxWxH): 12.1”x7.7”x15.5” /
306.6×195×393.3mm
• Weight: 20 lbs. / 9.4kg.
What’s In The Box:
• Two Omega Brackets
• Twist lock power cable
Optional Road Cases:
• DRC MH: 2 Vizi Wash Z19 fit in the DRC MH Road Case
• QRC MH: 4 Vizi Wash Z19 fit in the QRC MH Road Case
Ratings / Approval:
• cETLus Approved (Control #4000358)
