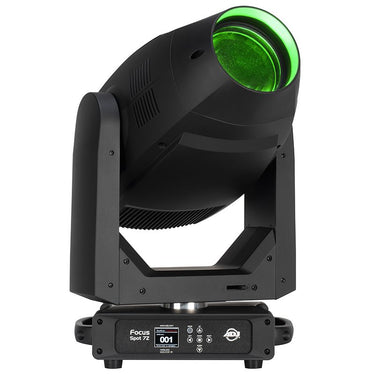

ADJ FOCUS SPOT 7Z

  • $4,449.99
    Unit price per
  • Save $1,949.96
Shipping calculated at checkout.


Offering an impressive output of 20,000 Lumens, the ADJ Focus Spot 7Z is a powerful and feature-packed moving head spot luminaire capable of producing spot and wash effects. Its efficient 420W LED light engine and superior optics allow the fixture to deliver crisp and even projections, while its extensive collection of integrated beam-shaping tools provide lighting designers with immense creative potential. These include full CMY + CTO color mixing; an animation wheel; motorized zoom (6° ~ 48°), focus and iris; as well as twin GOBO wheels, rotating prisms and frost filters.

SOURCE

420W White LED Engine
20,000 Hour Average LED Life

PHOTOMETRIC DATA
19,000 Total Lumens
7,000K, >73CRI (without CRI Filter)
7,700K >85CRI (with CRI Filter)
50,528 LUX @16.4’ (5m) (6° Beam)
1,799 LUX @16.4’ (5m) (48° Beam)

EFFECTS
4-Facet Circular & 6-Facet Linear Rotating Prisms
2 Frost Filters (Light & Heavy)
Animation Wheel (Rotatable and Indexable)
Motorized Zoom (6° ~ 48°)
Motorized Focus
Motorized Iris
Electronic Dimming & Strobe (1-20Hz)

COLOR
Full CMY color mixing
Variable CTO (2,700K to 8,000K)
Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
CMY and Color Wheel preset macros

GOBOS
(2) Gobo Wheels
#1 - (7) Interchangeable Rotating-Indexing Glass Gobos
#2 - (7) Interchangeable Rotating-Indexing Glass Gobos

CONTROL / CONNECTIONS
(3) DMX Channel Modes (30 / 34 / 45)
DMX512, ArtNet and sACN protocols
Aria X2 Wireless Management / DMX System
RDM (Remote Device Management) compliant
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5-pin XLR DMX In/Out
RJ45 connectors In/Out
Locking In/Out power connections
With Wired Digital Communication Network

PAN / TILT
Pan: 540-degrees
Tilt: 270-degrees
Pan & Tilt Locks

SIZE / WEIGHT
Length: 18.8” (477.5mm)
Width: 14.7” (374mm)
Vertical Height: 25.7” (653mm)
Center Spacing: 24.0” (609.6mm)
Weight: 55.3 lbs. (25.1kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 524W
Max ambient temperature: 14°F to 113°F (-10°C to 45°C)
Max housing temperature: 136°F (58°C)

TECHNICAL DATA
DB Rating @ 3ft.: 49dB
BTU: 0.53
BTU/H: 1,909.60

APPROVALS / RATINGS
CE | ETL Approved (Control #4010765)
IP20

INCLUDED ACCESSORIES
Locking Power cable
180mm Omega brackets (x2)

Specifications and documentation subject to change without notice.
