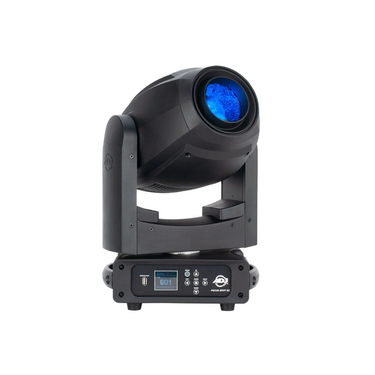

ADJ FOCUS SPOT 5Z

  • $1,579.99
    Unit price per
  • Save $619.96
Shipping calculated at checkout.


Powered by a 200W cool white LED engine, the Focus Spot 5Z is feature packed with motorized focus and zoom, 2 prism effects, 2 color wheels (each with 8 colors), a GOBO wheel with 7 GOBOs + open, and two frost filters to create soft edge wash looks.
Light Source:
• 200W Cool White LED Engine (50,000 hr.)

Features:
• Motorized Focus
• 2 Frost Filters to create wash effects
• Motorized Zoom: 11 ~ 22-degrees
• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• 2 cooling fans

Color Wheels:
• 8 dichroic colors + white on two separate wheels (includes CTO, CTB and UV filters)

GOBO Wheels:
• 6 Gobos (5 aluminum GOBOs, 1 glass GOBO) + open
• All GOBOs are removable & rotatable
• GOBO Shake Effect
• Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
• Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)


Prism Wheel:
• Prism Wheel 1: Rotatable 6-facet Circular
• Prism Wheel 2: Rotatable 5-facet Linear
• Each Prism is indexable


Frost Filters:
• Frost 1: Heavy frost for wash effect
• Frost 2: Light frost creates lightly blurred edges for GOBO and Prism FX


Control:
• 3 DMX Channel Modes: 19/22/26
• Color LCD display with 6-button function menu
• Control Mode: DMX512 or internal programs
• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
• RDM (Remote Device Management)

Pan/Tilt:
• Pan: 630 degrees
• Tilt: 270 degrees


Connections:
• DMX Connections: 5-pin XLR In/Out
• Power Connections: PowerLock In/Out to daisy chain power


Electrical:
• Multi-voltage operation: 90-240V, 50/60Hz
• Max power consumption: 280W


Dimensions & Weight:
• Dimensions: 7.15” (L) x 10.97” (W) x 18” (H) (181.5 x 278.61 x 457.4mm)
• Weight: 23 lbs. / 10 kg.

What’s Included:
• Omega Bracket
• 1.83M locking power cable

Optional Road Cases:
• DRC MH: 2 Focus Spot 5Z fit in the DRC MH Road Case
• QRC MH: 4 Focus Spot 5Z fit in the QRC MH Road Case

Approvals / Rating:
ETL Approved / CE Certified
