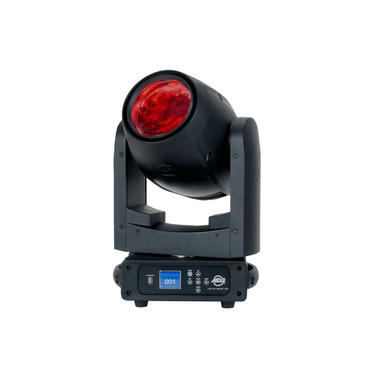

ADJ FOCUS BEAM LED

  • $1,499.99
    Unit price per
  • Save $599.96
Shipping calculated at checkout.


The ADJ Focus Beam LED is an 80W LED Beam moving head with a sharp 2.5-degree beam, motorized focus, two prims wheels and a built-in frost filter for wash effects.

Light Source:

1x 80W Cool White LED Engine

2.5° Beam Angle

Color Temperature: 7400K

50,000 Hour Average LED Life



Features:

Control Protocol: DMX & RDM (Remote Device Management)

DMX Modes: 2 (16 & 18)

Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)

Dim Speed control (0.1~10 Seconds)

Dimming: 0 - 100%

Strobe & pulse control

Motorized Focus

Linear Frost 0-100% (Wash effect)

2 Prisms: 6 & 8 Facet, Indexable and Rotatable

USB firmware update port

Adjustable LED Refresh Rates (900~25k Hz)

Adjustable Gamma Settings (1.0-2.8)

With Wired Digital Communication Network

Display: Touch display with 5-button touch menu



Color Wheel:

13 dichroic colors + white



GOBO Wheel:

Metal wheel with 15 fixed GOBOs + Open

GOBO shake effect



Prism Wheel:

Prism Wheel 1: Rotatable 8-facet Circular

Prism Wheel 2: Rotatable 6-facet Linear

Prism Indexing with overlay feature



Control:

Control Modes: DMX512, RDM (Remote Device Management)

 & Stand Alone Internal Programs

2 DMX Channel Modes: 16 & 18 channels

16-Bit Pan, Tilt & Dimmer control


Connections:

DMX Connections: 5-pin Locking XLR In & Out

Power Connections: Seetronic Locking Power In & Out


Pan/Tilt:

Pan & Pan Fine: 630 degrees

Tilt & Tilt Fine: 270 degrees


Electrical:

Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)

Maximum Power Consumption: 136W @ 120V

Daisy chain: 15 units @ 120V; 30 units @ 230V


Dimensions & Weight:

Dimensions (LxWxH):  10.96" x 7.55" x 17.61" / 278x191x447mm

Weight: 27 lbs. (12.25 kg)



What’s Included:

2x Omega Brackets

1x Seetronic Power Locking Power Cable


Optional Road Cases:

DRC MH: 2 Focus Beam LED fit in the DRC MH Road Case

QRC MH: 4 Focus Beam LED Pearl fit in the QRC MH Road Case
