Encore DBX is a dynamic effect fixture featuring a 5-color LED dual-lens blinder/strobe and RGB background LEDs for stunning visual effects. Powered by two 150W RGBAW LEDs, it offers flexible control, variable white color temperatures, and rugged IP65-rated durability.

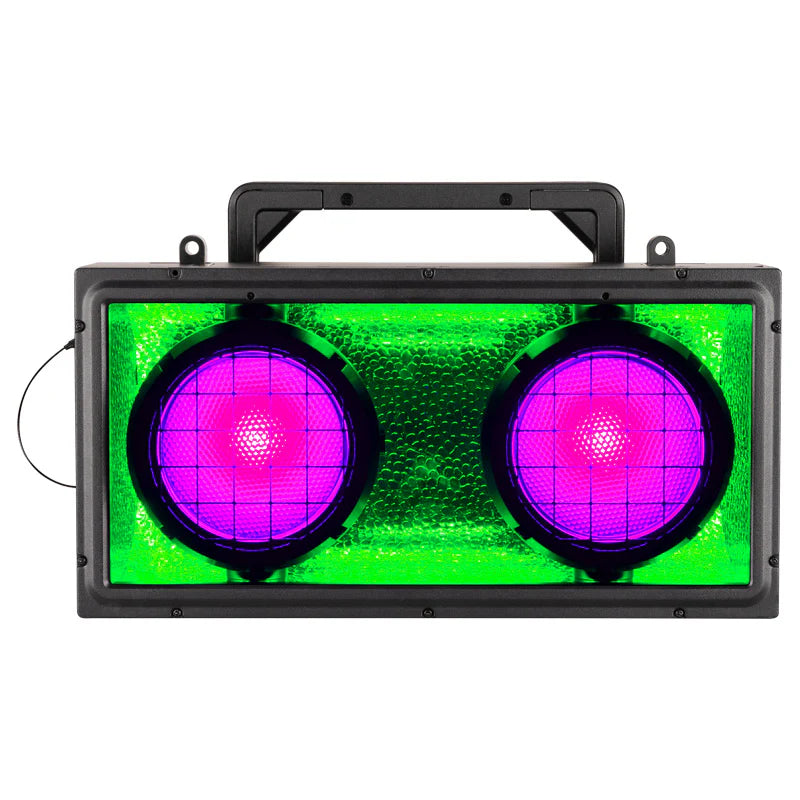

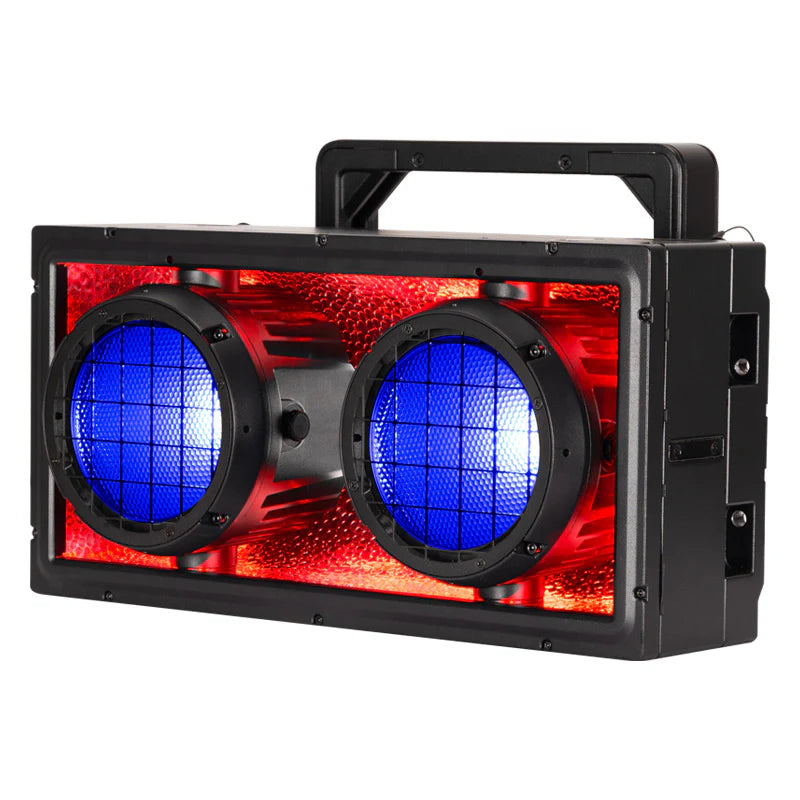

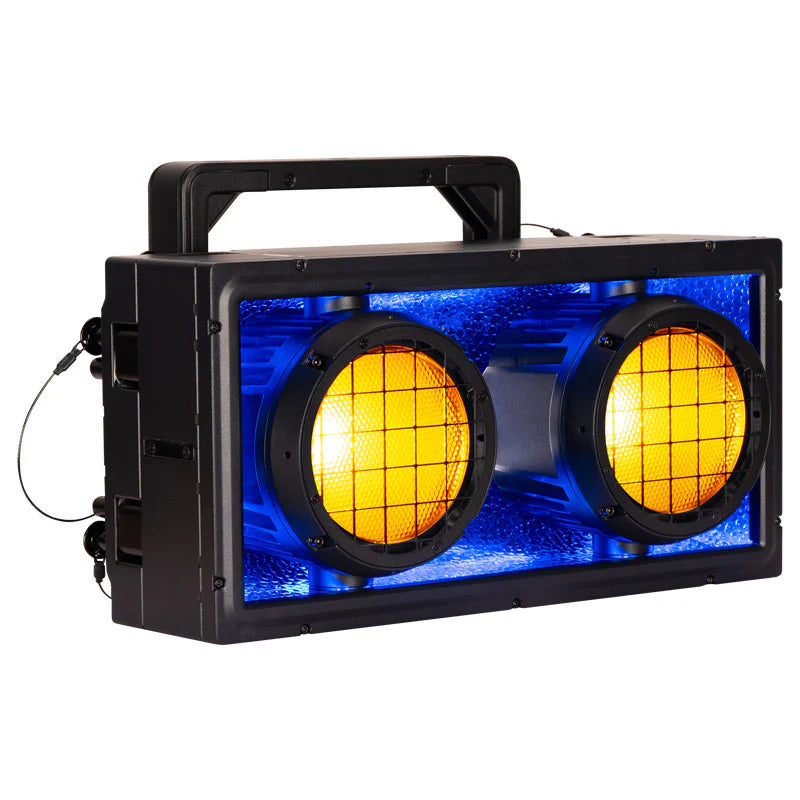

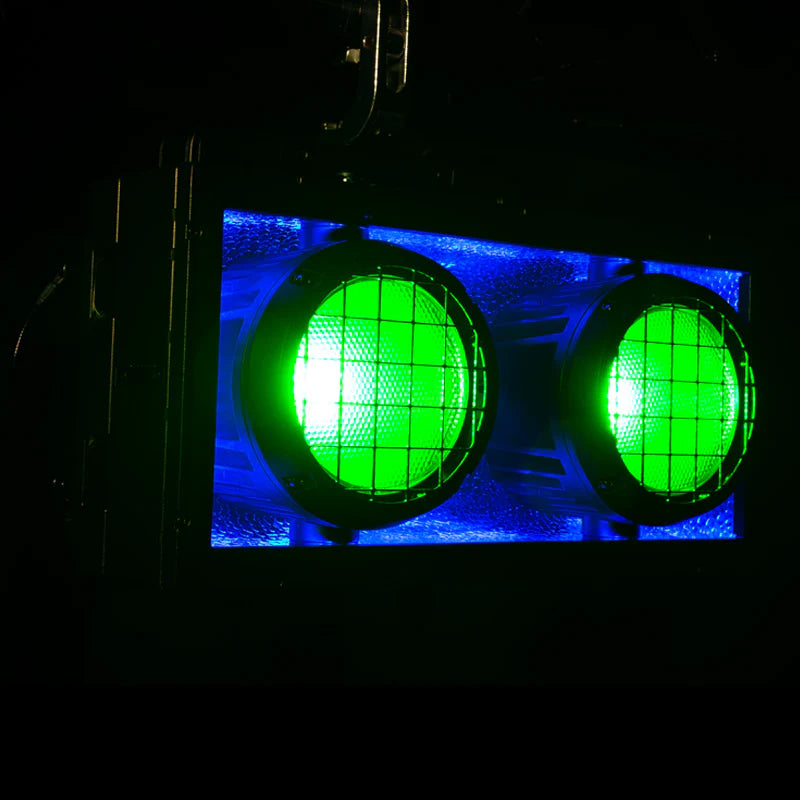

Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event. Featuring a 5-color LED dual-lens blinder/strobe and vibrant RGB background LEDs, it delivers dynamic lighting effects and intense audience interaction. Powered by two 150W RGBAW LEDs and backed by a high-output RGB reflector, the Encore DBX offers a total lumen output of 11,400+, producing rich colors and sharp contrast.
Specifications
2 Cell, Five Color (RGBAW) LED Blinder
Background RGB LEDs
Individually Controllable Cells
Built-In Cell Programs
Built-In Background LED Programs

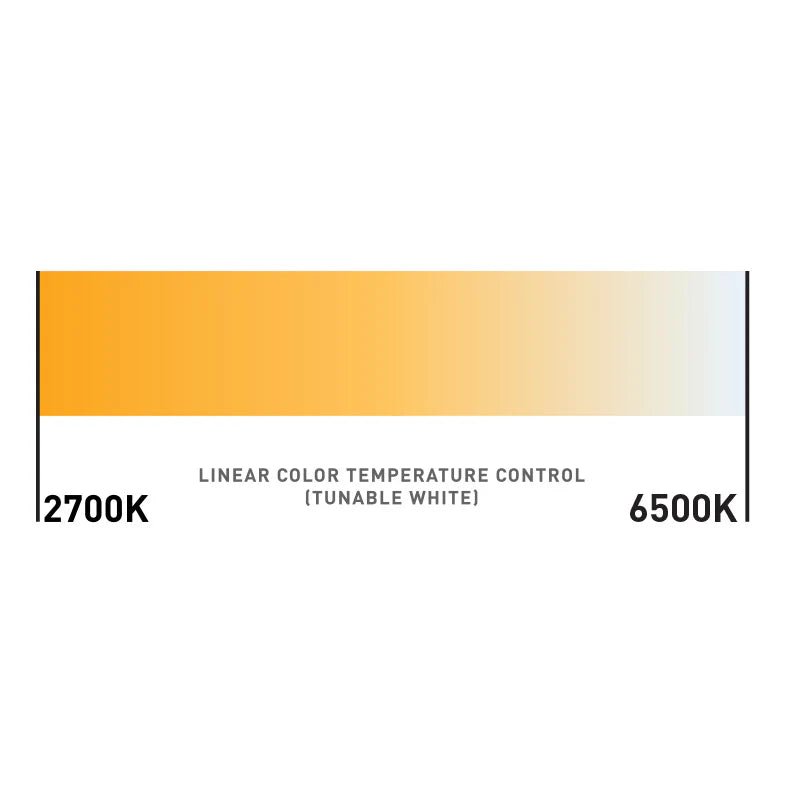

Variable White Color Temperature Control (2,700K ~ 6,500K)
User Selectable LED Refresh Rates (900Hz ~ 25K)
6 User Selectable Dim Modes
4 User Selectable Dim Curves
Electronic Strobe (1 ~ 20Hz)
Electronic Dimming
Aria X2 Wireless Management System
Source:
2x 150W RGBAW LED's
RGB Background LED's
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometrics:
Total Lumen Output: 11,465
CRI: 89
Optical:
Beam Angle: TBA
Field Angle: TBA
Effects:
Variable Strobe Rate: 1- 20Hz
Variable 16-bit Dimming Modes and Curves
RGB Background Reflector Effect
Color:
RGBAW Color Array
RGB Background
Variable CCT 2700K - 6500K + five presets
Physical:
IP65 Housing
OLED Digital display

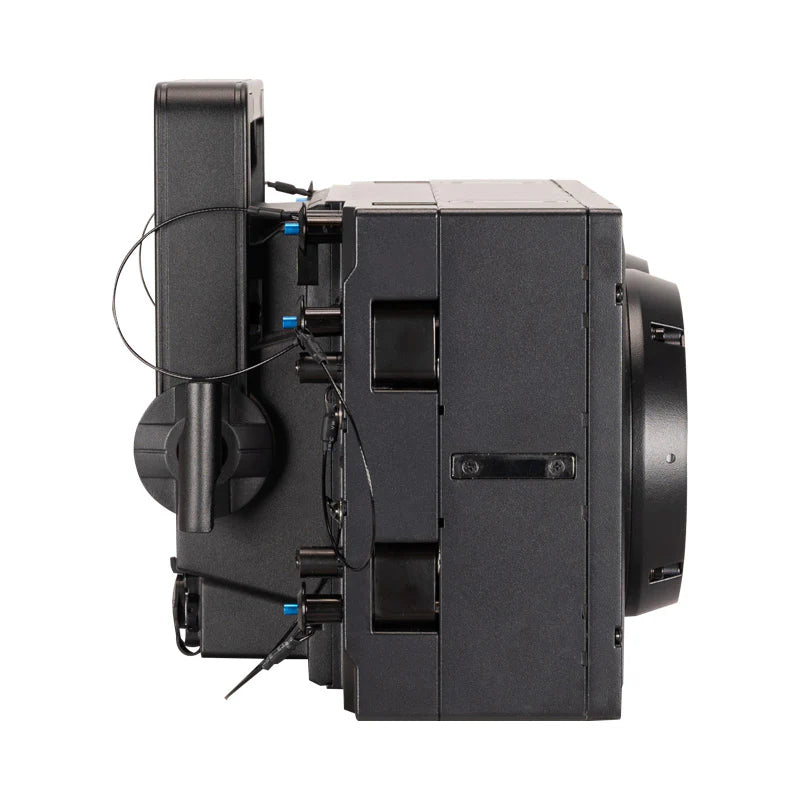

Adjustable Mounting Yoke with Omega Receivers
Second Set of Omega Receivers on Rear
Control:
DMX512
Aria X2 Wireless Management / DMX System
Bluetooth
RDM (Remote Device Management)
(17) DMX Channel Modes (5CH / 8CH / 10CH / 11CH / 12CHA / 12CHB / 16CH / 18CH / 19CH / 21CH / 22CH / 25CH / 26CH / 29CH / 31CH / 35CH / 41CH modes)
On-board Manual Control Mode
Primary / Secondary Mode

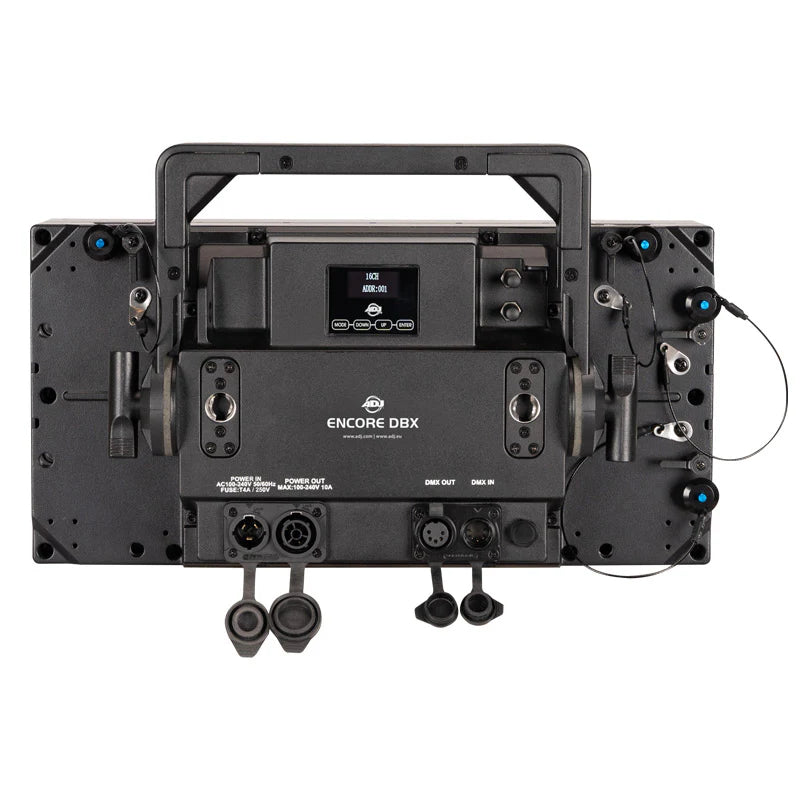

Connections:
5pin XLR IP65 DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
IP65 Locking Power Sockets
Dimensions Weight:
Length: 16.54” (420mm) Width: 10.28” (261mm) Height: 9.11” (231.3mm)
Weight: 26.1 lbs. (11.85 kg)
Power:
AC100-240V/50Hz-60Hz Input
347W Power Consumption
Link 2 pieces @120VAC or 6 pieces @ 230VAC
Thermal:
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications IP Rating:
CE
cETLus (Pending)
FCC
IP65
Included Accessories:
(1) Outdoor Locking Power Cable
(1) Safety Cable
Specifications and documentation subject to change without notice.
