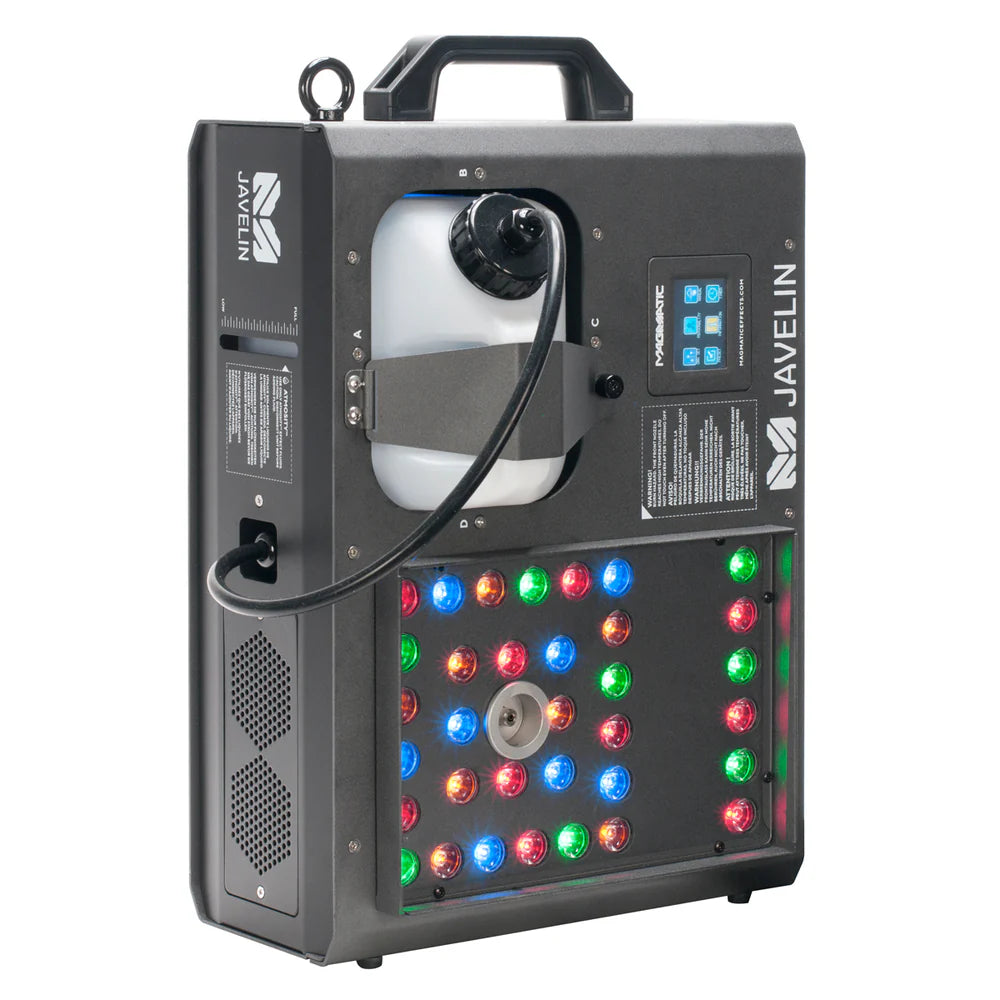

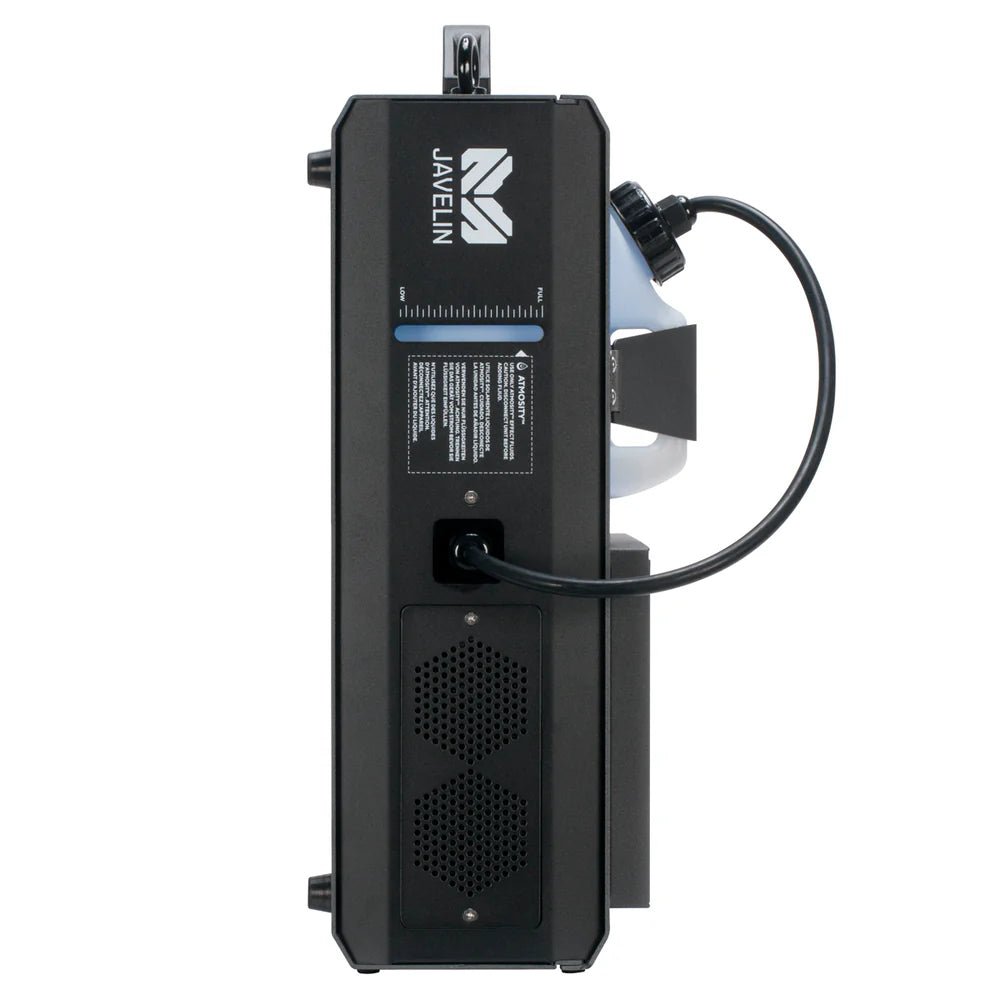

A member of MAGMATIC'S Rocket series of CO2 cryogenic simulation effects, the MAGMATIC JAVELIN™ is a high-velocity CO2 simulator fog machine for high-impact moments. Featuring 34 x 3-watt RGBA (Red X10 Green X8 Blue X8 Amber X8) LEDs for throws of dynamic colored effect, the JAVELIN can rotate 90-degrees for horizontal or vertical bursts of fog. Wrapped in a durable aluminum housing, the JAVELIN is intuitively controllable via DMX-512 and RDM and houses an easy-to-use onboard LCD touch screen control panel. Wired and wireless remote control options are available.
- High-velocity CO2 simulator fog machine
- Four, 8-second 20-ft bursts
- Vertical and horizontal bursts of fog
- 34 x 3-watt RGBA LEDs (Red X10 Green X8 Blue X8 Amber X8)
- Use of LEDs even without the use of Fog
- Durable tour-ready aluminum housing
Specifications
PERFORMANCE
- Rated Power: 1450W
- Max Output: 50,000 CFM* (cu ft/min.)
- Fog Burst (Distance): 5-6m / 3 sec.
- Ready Time: Initial = 9 Minutes*
- Fluid Capacity: 0.66 gallons (2.5 liters)
- Fluid Consumption: 6.09 oz/min (180 ml/min) *approximate
- Max Continuous Output Duration: 8 Seconds
COMPATIBLE FLUID
- Atmosity Flash Fog Fluid (AFF-4L)
- Atmosity Extreme Filtered Fog Fluid (AEF-4L)
CONSTRUCTION
- Thermally Protected Heat Exchanger
- Removable Fluid Reservoir

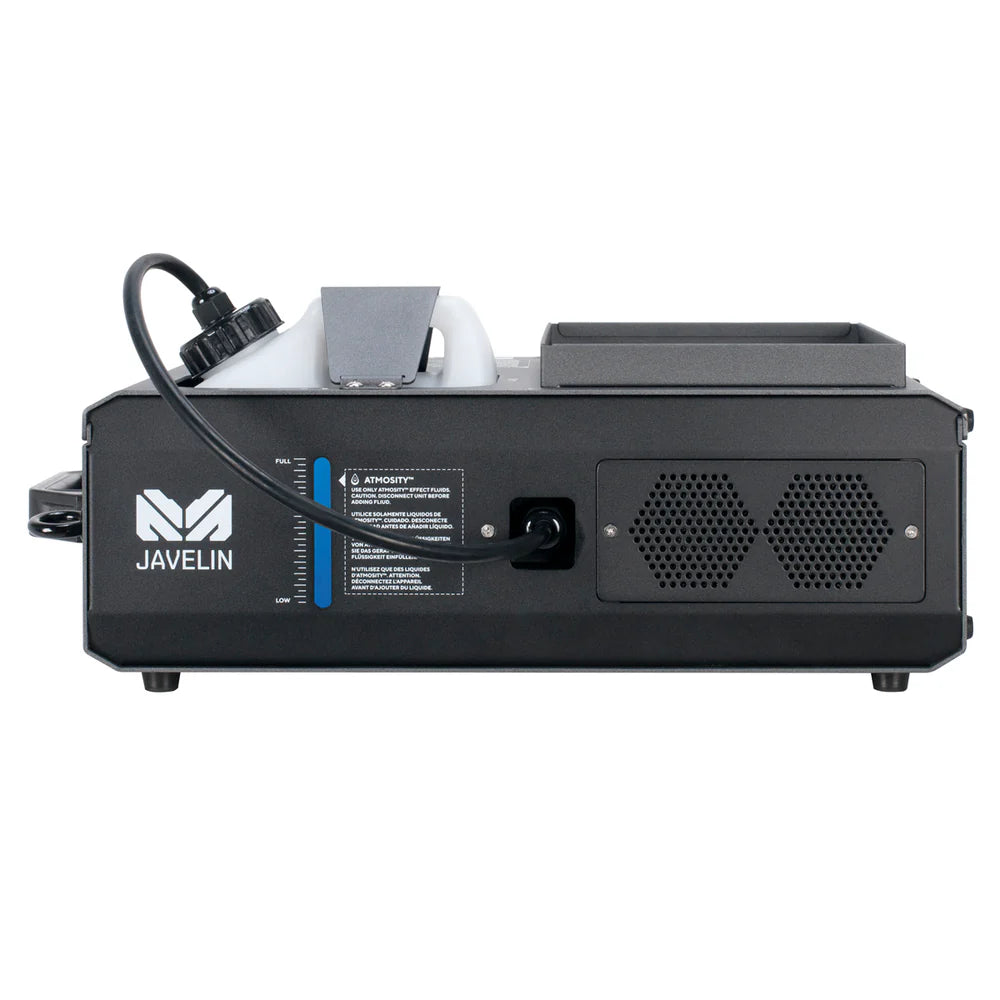

- External Visual Fluid Level Detection
- Compact Light Weight Mobile Design
CONTROL
- 4 DMX Channel Modes (1 / 4 / 7 / 12)
- Onboard LCD Touch Control Panel
- DMX-512 and RDM Protocol Support
- Optional MagFLY Wireless Module (See Accessories)
- Optional RF Wireless Module and Remote (See Accessories)
- MagRemote VIDI

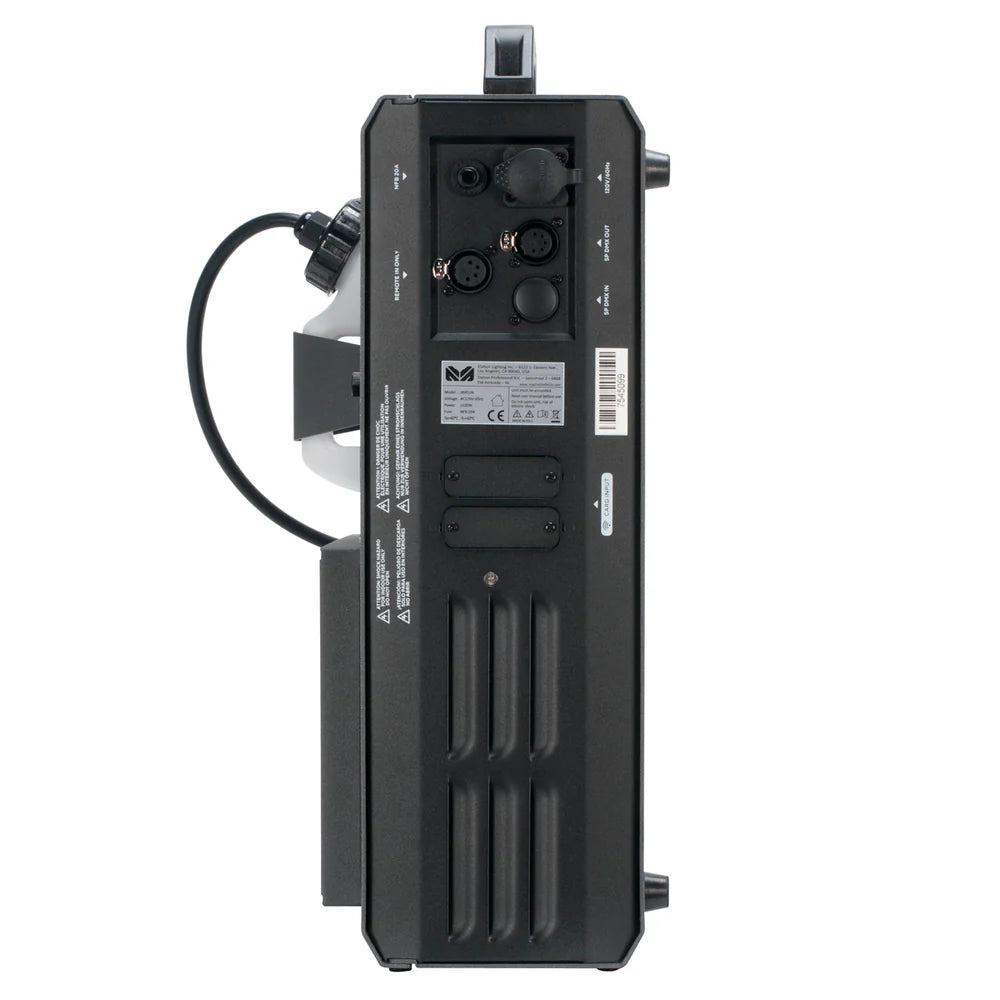

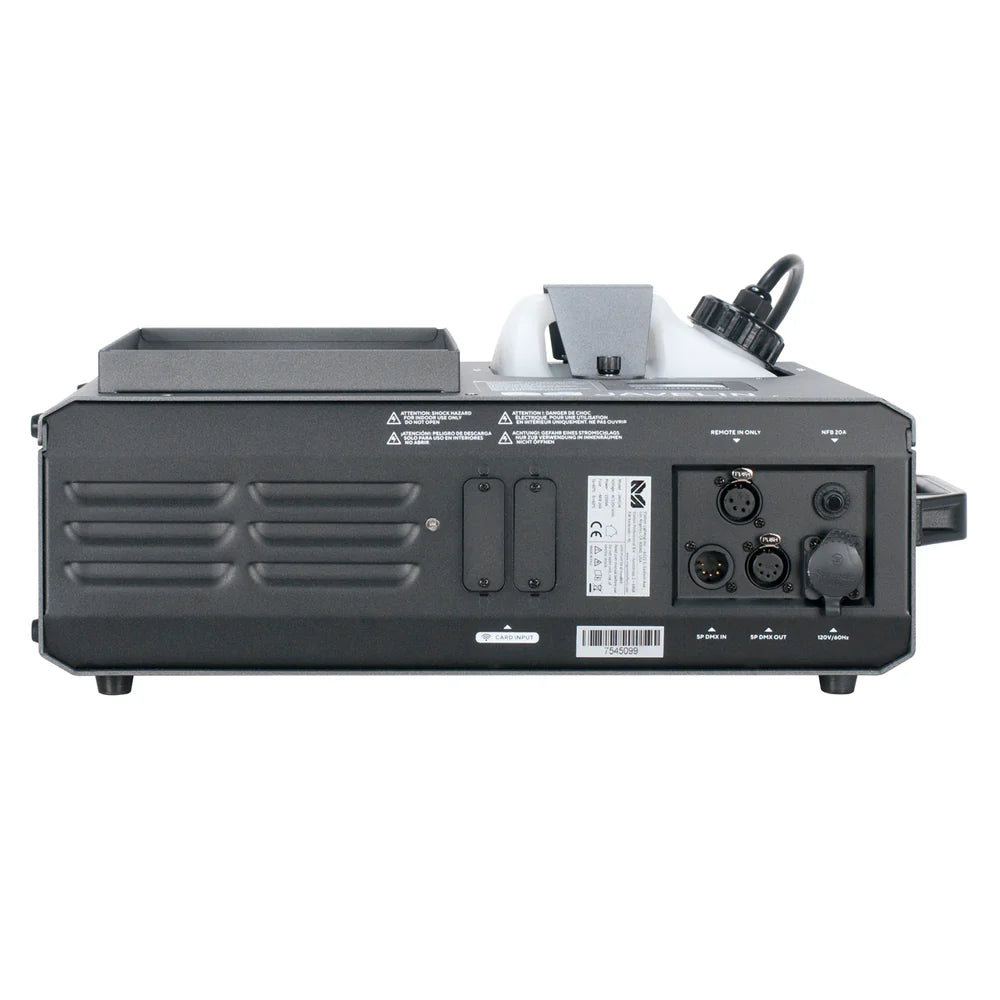

CONNECTIONS
- Locking 5pin XLR Connector In/Out
- IP65 Locking Power Connector In
- With Wired Digital Communication Network
SIZE / WEIGHT
- Length: 15.0 in. (380mm)
- Width: 7.7 in. (195mm)
- Height: 19.1 in. (484mm)
- Weight: 28.66 lbs. (13kg)
ELECTRICAL
- AC 120V 60Hz, 230V 50Hz
- NFB: 20A (120V Version) 10A (230/240V Version)
- Max Power Consumption: 1500W
THERMAL
- Maximum Ambient Temperature (Ta max) 104°F (40°C)
- Exterior Surface Temperature, Steady State: 140°F (60°C)
ACCESSORIES
- MagFLY (MSR934) Wireless DMX Transceiver Module
- MagRF (MSR912) RF Module and Wireless Remote
- Omega Rigging Bracket x2 (SY2504F-B20)
APPROVALS / RATINGS
CE | cETLus | IP20 | UKCA
Specifications and documentation subject to change without notice.
