MARTINSKU: 92215350

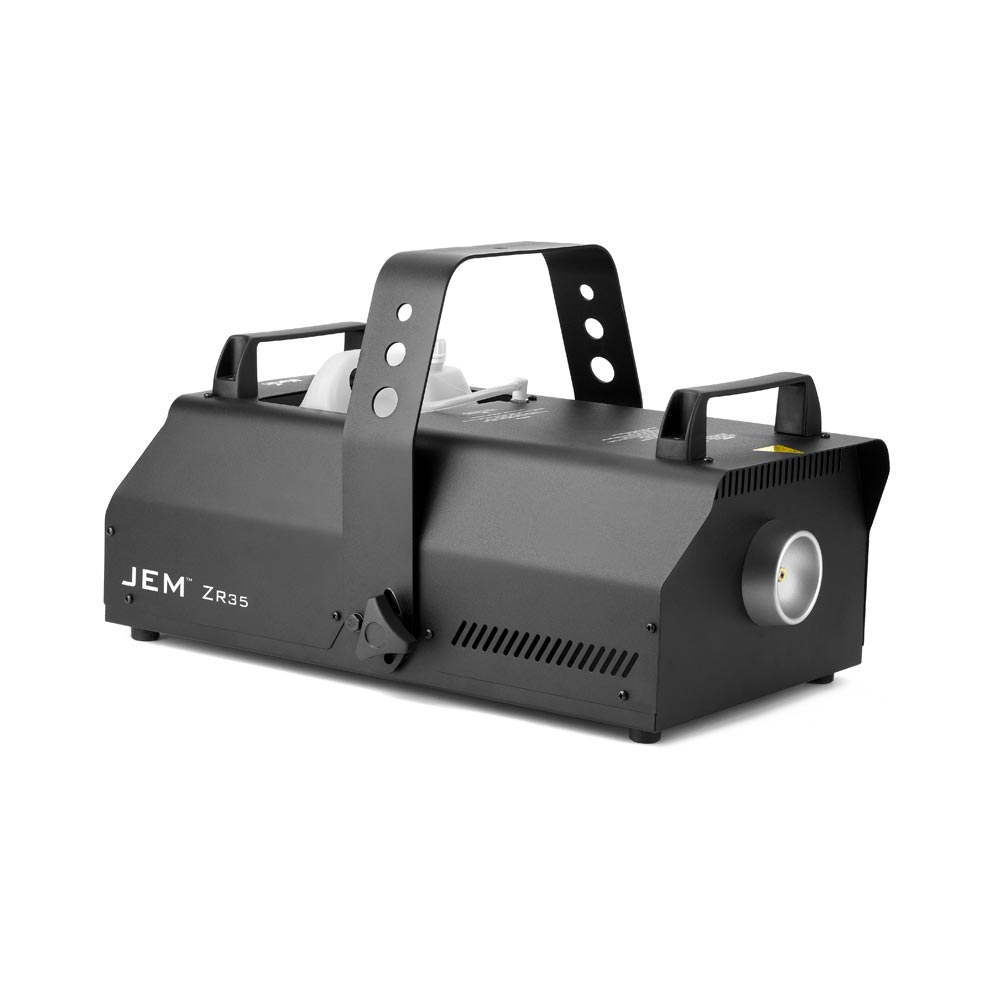

MARTIN JEM ZR35 1500 WATT PROFESSIONAL FOG MACHINE

$1,145.00
Shipping calculated at checkout.
MARTIN JEM ZR35 1500 WATT PROFESSIONAL FOG MACHINE - Port Lighting Systems
MARTIN JEM ZR35 1500 WATT PROFESSIONAL FOG MACHINE
$1,145.00
Payment & Security
Amazon
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

The JEM ZR35 is a mid-sized fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its powerful 1500 W heat exchanger, the JEM ZR35 produces a fantastic peak output ideal for mid to large-sized venues and stages in both install and rental markets.The rugged yet weight optimized JEM ZR35 also features variable output control for more subtle effects and is fully up-to-date with and integrated digital remote control, DMX and RDM.The entire JEM ZR range is compatible with a wide range of JEM Pro-Fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.

  • High endurance mid-sized fog machine
  • Exceptional performance and output
  • Various control options via digital remote, DMX and RDM

    FEATURES

    • Robust roadworthy design

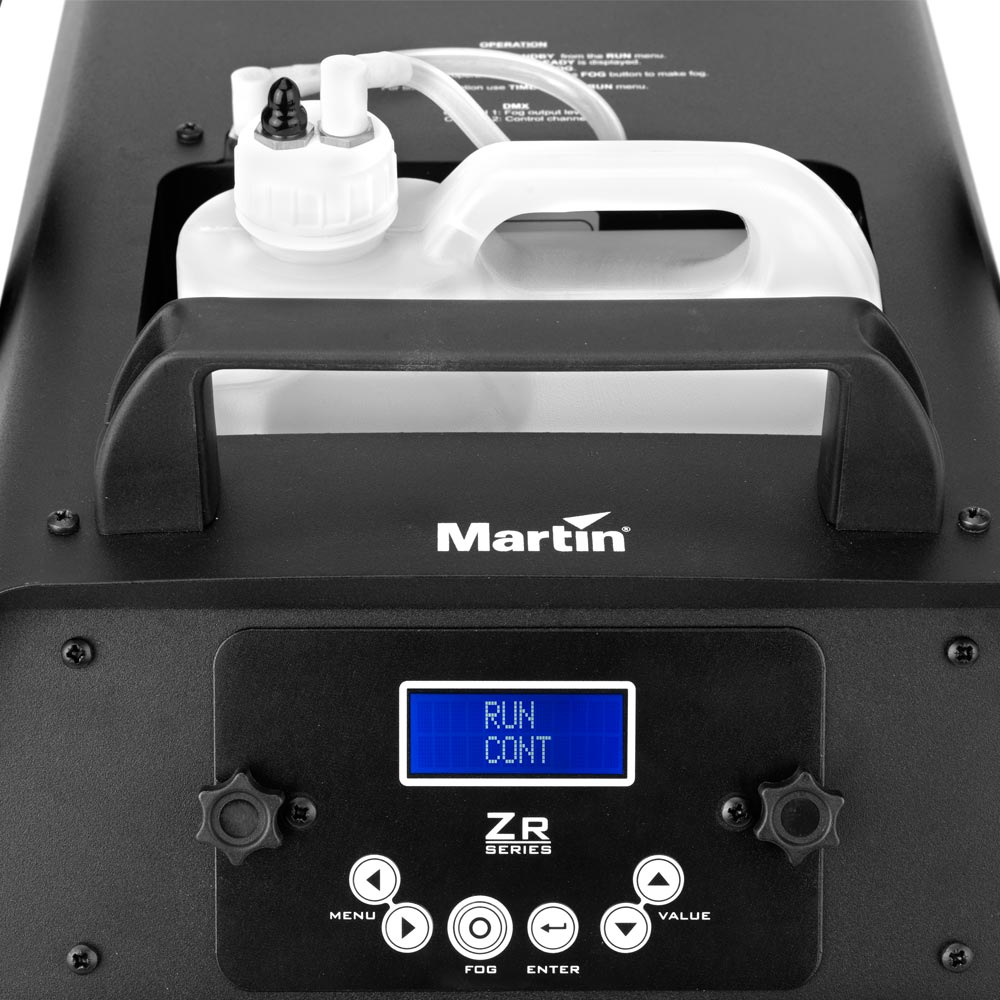

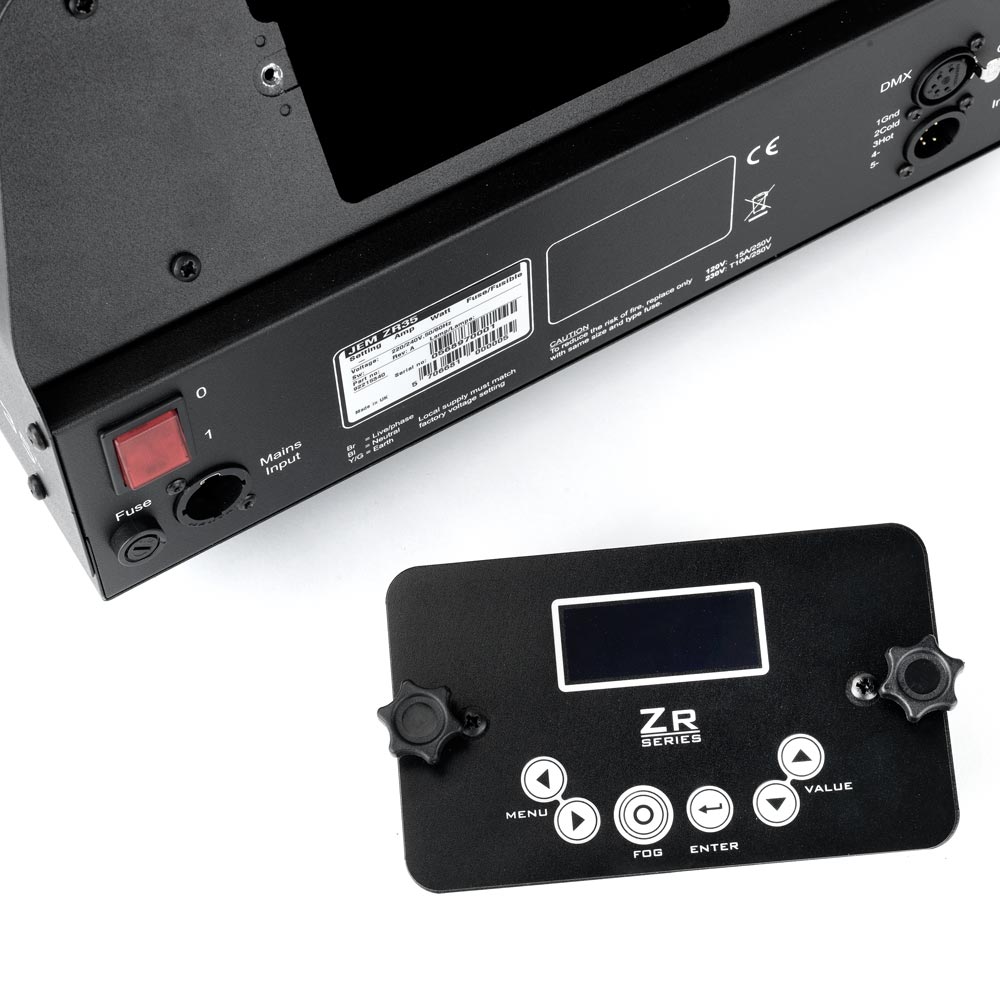

    • Integrated Digital Remote Control
    • DMX with RDM
    • Floor standing or truss mounting (hanging bracket included)
    • 1500 W heat exchanger
    • 800 m³ (28,252 ft.³) per minute fog output
    • Variable output control for subtle effects
    • Continuous effect output
    • Compatible with a wide range of JEM Pro-Fog fluids
    • 4 l Fluid reservoir with quick-connect fitting (compatible with 5 l bottle)
    • Easy external fluid connection
    • Optional Ducting Kit

      SPECIFICATIONS

      PHYSICAL
      Length: 590 mm (23.3 in.)
      Width: 395 mm (15.6 in.)
      Height: 264 mm (10.4 in.)
      Height with hanging bracket: 333 mm (13.9 in.)
      Weight, dry: 15.1 kg (33.3 lbs.)
      Weight, filled: 19.1 kg (42.1 lbs.)

      PERFORMANCE
      Coverage volume: 800 m3 (28,252 ft3) per minute
      Fluid consumption (max.): 140 ml per minute
      Maximum operating time, maximum output, 4 l of fluid: 1.25 hours
      Ready time: 9-minutes
      Continuous effect output

      CONTROL AND PROGRAMMING
      Control options: Integrated digital remote control, DMX, master/slave link mode
      Control parameters: Continuous or timer-controlled output
      Fog: Variable output control, 0-100%
      DMX channels: 1
      External fluid control: Fluid sensing
      DMX compliance: ANSI E1.11 - USITT DMX512-A
      RDM compliance: ANSI/ESTA E1.20 RDM

      CONSTRUCTION
      Housing: Steel and aluminum
      Color: Black
      Heat exchanger: 1500 W, thermally protected
      Fluid pump: Oscillating piston, high pressure
      Fluid management: Fluid out sensing, sealed for transportation
      Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
      Remote Control: Integrated digital remote with 3 m (9.84 ft.) cable, 3-pin XLR connector
      External Fluid Control: Fluid sensing
      Hanging bracket: Integrated yoke with safety attachment point

      INSTALLATION
      Mounting: Standing or hanging
      Orientation: Up to +/-40° from horizontal
      Clearance around machine: 100 mm (4 in.)

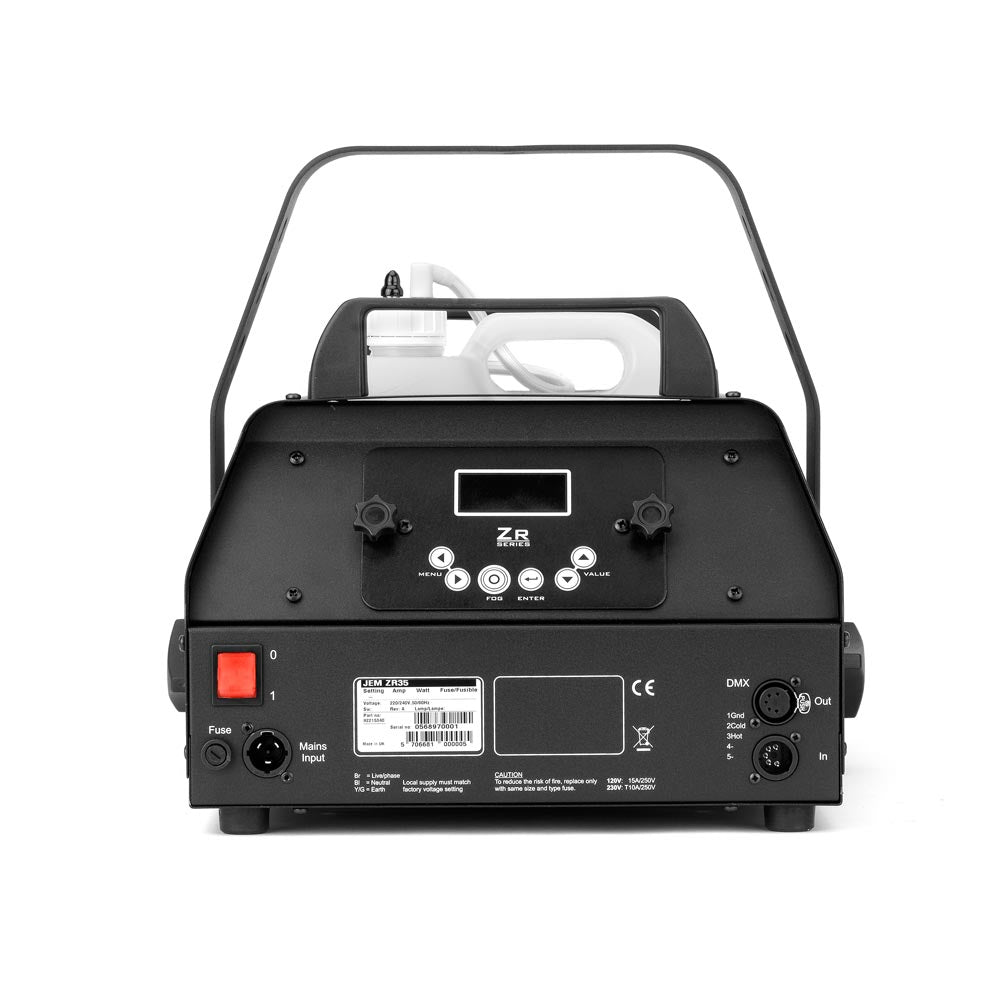

      CONNECTIONS
      AC Power: Neutrik PowerCON TRUE1

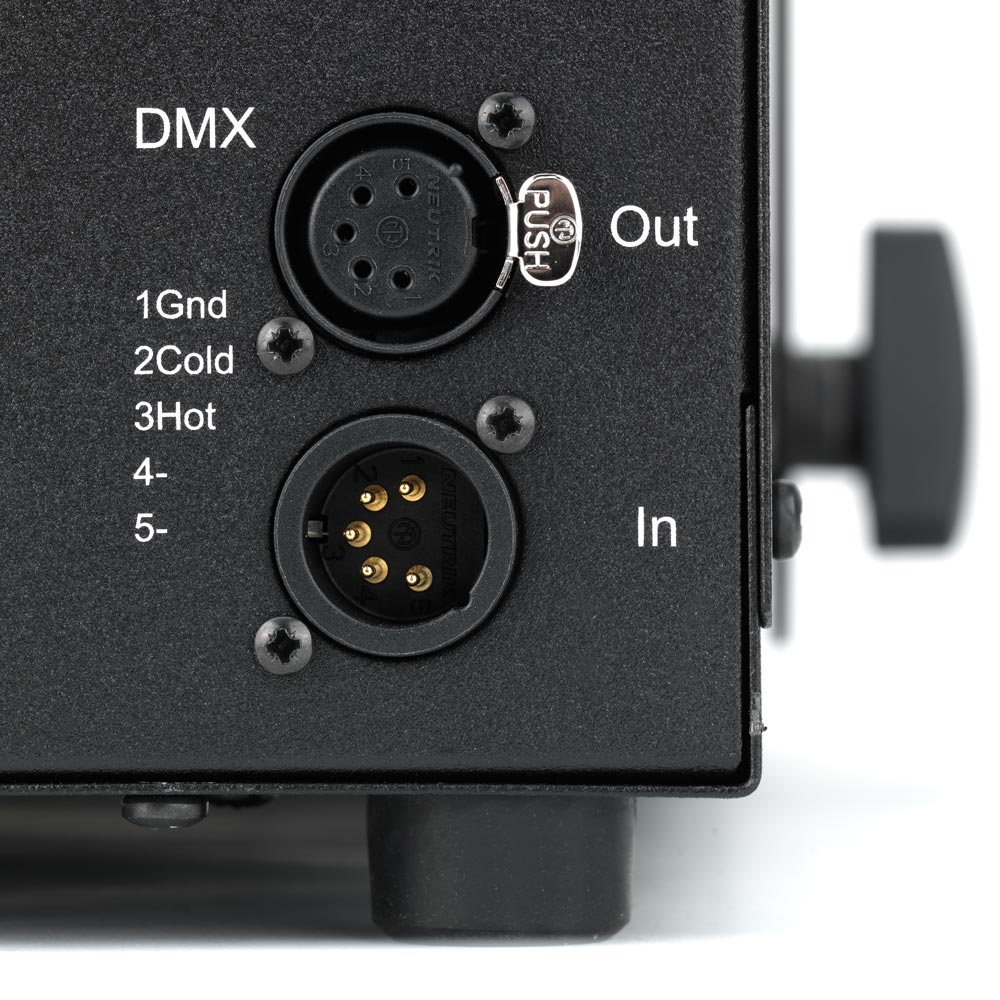

      DMX, link mode in/out: 5-pin locking XLR
      Remote control: 3-pin locking XLR
      Firmware: AVR socket

      ELECTRICAL
      US Model:

      AC power: 100-130 V nominal, 50/60 Hz
      Main fuse: 15 AT (slow blow), 125 V
      Typical power and current: 1450 W, 12.1 A*

      *Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

      THERMAL
      Maximum ambient temperature (Ta max.): 40° C (104° F)
      Minimum ambient temperature (Ta min.): 5° C (41° F)
      Exterior surface temperature, steady state: 30° C (86° F)
      Maximum nozzle temperature: 290° C (554° F)

      APPROVALS
      EU safety: EN 60 335-1+A15, EN62233
      EU EMC: EN 61000-6-3
      EU immunity: EN 61000-6-1
      US safety: UL 998
      Canadian safety: CSA C.22.2 No. 104.01
      Australia/NZ: RCM (pending)

      INCLUDED ITEMS
      Fluid reservoir, 2.5 l: P/N 34300521
      JEM ZR Series Integrated Digital Remote Control: P/N 92765048
      Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043
      Power input cable, US, 10 A, PowerCON TRUE1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N 11501044
