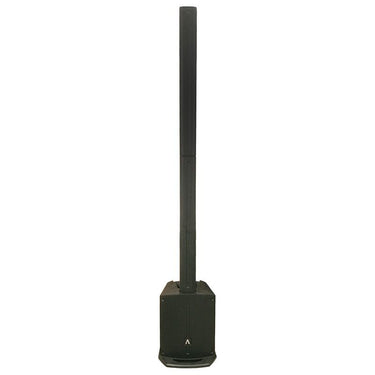

AVANTE AS8 ACDC BATTERY POWERED PORTABLE COLUMN SPEAKER SYSTEM

The Avante Audio AS8 ACDC is an easy-to-setup active column system with Bluetooth® 5.0, perfect for acoustic solo performers, small bands, venues and mobile entertainers. The system comprises an active 8-inch neodymium subwoofer enclosure alongside two column units. One column is loaded with six precision-aligned 2.75” neodymium drivers while the other serves as a spacer to lift the speaker column up to optimal height. The SAM (Secure Array Mount) system allows the columns to lock securely to the sub and to one another without risk of being toppled over, eliminating the need for speaker cables. It operates self-contained on a rechargeable Lithium-Ion battery, providing an average run time of 4 to 5 hours.

SYSTEM INCLUDES:

• (1) 8-inch neodymium Subwoofer

• (1) Column with six 2-75-inch neodymium Speakers

• (1) Spacer

• (1) Carry bag for columns

AMPLIFIER:

• Inputs: Two XLR/TRS combo jacks, Stereo 1/4” inputs, Stereo 1/8” input, Bluetooth® 5.0

• Outputs: XLR balanced line output

• Power output: RMS 250W (SUB) RMS, 1000W peak

• Volume: Input Gain control per channel

• EQ: Main out 2 band EQ

• LEDs: Power/Clip indicator

• Power Input: 100-240V~50/60Hz switchable 250W

   On-board 28.8V 5000mAh- 144Wh Lithium-Ion Battery. (Rechargeable)

• Battery life indicator

• Amplifier: Class D amplifier with switching power design

ACTIVE VENTED SUBWOOFER:

• Frequency Response: 55-200Hz

• Max Output SPL: 116dB (at max. amp output)

• Impedance: 4 Ohm

• Driver: 8-inch neodymium subwoofer, 1.5” voice coil, 28 oz. magnet

• Cabinet: PP plastic

• Grill: 1.0mm steel

• Dimensions: 13.8”x16.9”x16.3” / 350x430x413mm

• Weight: 25.8 lbs. / 11 kg.

PASSIVE FULL-RANGE SPEAKER COLUMN:

• Frequency Response: 180-20kHz

• Max. output SPL: 110dB

• Impedance: 4 Ohm

• Driver: 6x 2.75-inch neodymium drivers

• Cabinet: PP plastic

• Grill: 1.0mm steel

• Dimensions: 3.8”x3.8”x34.3” / 96x96x870mm (each column)

• Weight: 11 lbs. / 5 kg. (each column)

REAR PANEL:

• 4 input mixer with line out

• Two (2) Mic/Line Input (XLR/TRS Combo)

• Two (2) Guitar/Line Input (1/4" Stereo)

• 1/8” stereo Aux Input

• Line Output (XLR)

• Dual Band EQ

• Battery life indicator

• Bluetooth® 5.0

EXTENDED POSITION:

• Dimensions: 13.8”x16.9”x79.1” / 350x430x2010mm

COMPACT POSITION:

• Dimensions: 13.8”x16.9”x47.6” / 350x430x1210mm

APPROVALS:

• cETLus (Control #3069848)

• FCC
