• $2,872.00
    Unit price per
  • Save $718
Shipping calculated at checkout.

  • Battery-driven IP65 RGBW LED light source
  • 10° (with 10° lens) native beam angle, adjustable via magnetic holographic filters
  • Up to 24 hours battery operation
  • DMX, RDM, and 100% wireless (power and control)
  • 2000K - 10000K CTC control
  • Ultra-high-speed strobe effect
  • Practically maintenance-free and silent performance
  • Flicker-free / Programmable scenes

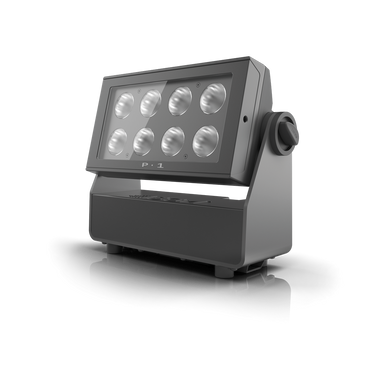

The P-1 is a versatile RGBW wash with full wireless operation, designed to match the requirements of corporate productions, broadcast applications, wedding receptions, staging, and events. To further enhance its versatility, available unique magnetic holographic filters allow the P-1 to modify its beam angle depending on the application, while the onboard Lithium-Ion battery pack provides for extended run times without recharge, eliminating the need of cables or mains power. The P-1 is a smart, reliable, and powerful luminaire built in a compact, lightweight, and elegant assembly: an LED wash that sets a new standard for the most demanding users.

LED Technology
The P-1 luminaire employs 8 high-power 12.5W RGBW LEDs, divided into two vertical, individually controllable segments. The P-1 includes 2000K - 10000K CTC color temperature control, with 16bit control over dimming and RGBW pixels. A powerful shutter and accurate color calibration provides the means for the P-1 to match the same colors available in the fixtures from the P, Q, and i series. The LEDs expected lifetime is 50,000 hours.

Battery and wired operation
As a 100% wireless wash light, the P-1 offers a vast array of options for setups. However, the P-1 may also be wired, with or without batteries. The battery capacity of the P-1 is configurable up to 24 hours, and it only requires 3.5 hours to be recharged to 75%. The battery status may be monitored remotely via RDM or via the built-in OLED display. When connected to mains power, the P-1 only requires 70W.

Magnetic holographic filters
The P-1 can be operated as a powerful 10º wash natively, but also as a flexible luminaire through the use of available optional low-loss holographic filters. With this magnetic set of spread angle filters, it is possible to modify the aperture of the beam angle to achieve a seamless medium spread of 19º, a powerful wide diffusion at 45º, or a versatile elliptical effect in horizontal (63º/12º) or vertical (12º/63º). An empty magnetic frame is also available for the usage of custom color filters or diffusers.

Set, theatrical, and studio features
The P-1 was originally conceived as a theatre set and studio luminaire. This silent running wash fixture does not require active ventilation due to its passive cooling facilities. It is a very powerful fixture for low-noise environments. The P-1 base includes rubber feet, enabling it to be placed on delicate floor surfaces without special care. Finally, the P-1 may be ordered with optional easy-fit 4-way or 8-way barndoors to eliminate undesired light bleed in theatres or studios.

Pixel mapping
Two individually controllable LED segments are incorporated into the P-1. The DMX selection allows users to control the Red, Green, Blue, and White LEDs for each vertical segment, both in 8bit and 16bit modes. This is a very interesting feature, providing the ability to operate the P-1 as a "direct view" fixture for pixel mapping special effects design and programming.

IP rating
The durable IP65-rating of the P-1 luminaire ensures that the fixture is kept free from externally induced particles and liquids on internal optics and light sources, such as smoke fluid, dust, dirt, airborne pollution, and humidity. It is ideal for outdoor applications, while being practically maintenance-free, makes it a sustainable and long-lasting choice for both outdoor as well as indoor events and installations.

The internal built-in dehumidifier protects this fixture from moisture, pollution and any other factors that can generate corrosion. The patented SGM dehumidification not only removes humidity but also prevents oxidation and condensation, while a gore-tex membrane equalizes internal pressure to prevent leaks. Learn more about dehumidification

Thermal management
 To achieve optimum performance of the LEDs at all times, this bright and accurate luminaire is optimized to manage heat impact through SGM’s unique thermal management technology. The technology consists of a uniquely designed body and heat sink, which ensures optimal cooling of the LED chips. Additionally, the special aluminum alloy and surface treatment ensures maximum heat dispersion while the fan-assisted cooling ensures optimal performance at any time and under any conditions (such as variable temperatures, limited airflows, confined installation spaces, etc.). Like all SGM LED products, the P-1 consists of SGM’s superior thermal management technology and tested under extreme hot and cold conditions, which ensures that the LEDs always operate within safe parameters. Learn more about SGM thermal management

Mounting options
The P-1 may be ordered with or without batteries for use in wired mode. The battery pack may be ordered separately and added later when the need arises. In any case, the P-1 can be mounted onto the ceiling, in a rig, or in a wall-mount. The unit includes one omega bracket with two 1/4 turn locking points. Optional barndoors and magnetic filters are available. The P-1 is Kensington lock compatible and there is an optional anti-theft protection available for long-term installations.


Included SGM technologies

This thermal management techonology provides Advaced Temperature Control monitored via sensors and software, keeping optimal LED junction temperatures, and ensuring maximum reliability for long-term use. The ThermalDriveTM system includes cutting-edge heat removal via passive thermal tecniques and active forced-air cooling (depending on the product), specifically designed to maintain LED efficiency while extending fixture's lifetime.

SGM uses Full Range Calibration in all LED fixtures over CIE space and black body curve, measured via spectrometer and SGM Illumination Lab software. To provide the best user experience, SGM's Color Match procedure ensures accurate wavelength reproduction within the product range via colored LEDs, dichroic filters, or CMY mixing (depending on the product); all of them specified to match the SGM color palette.


Optical Data
LED expected lifetime (L70) 50,000 hours
Lightsource 8 x high-power 12.5W RGBW LEDs
Native lens options 10°
Optional filters Elliptical horizontal, I/P, external (10° x 60° angle)
Elliptical vertical, I/P, external (60° x 10° angle)
Wide, P-1/P-6/P-10, external (47° angle)
Medium, P-1/P-6/P-10, external (18° angle)
Average CRI (CTC) 80
Color temperature range 2000K - 10000K
Efficacy 33 lm/W
Light output all LEDs on 3073 lm
Light output blue 316 lm
Light output green 1018 lm
Light output red 544 lm
Lumen per kilogram 539 lm / Kg
Lux @ 10m 514 lux
Lux @ 3m 5709 lux
Lux @ 5m 2055 lux
Native beam angle(s) 10° (with 10° lens)
19° (with Med filter frame)
45° (with Wide filter frame)
Native field angle(s) 22°
Color options Black - RAL 9004
Custom color - Any RAL
White - RAL 9010
Effective Projected Area 0.85 Square ft
IP class IP65
Lens material Tempered glass front
Material Aluminium
Net dimensions L x H x W 334 x 254.6 x 119 mm
Net dimensions L x H x W (inches) 13.2 x 10 x 4.7 inches
Net weight 5.7 kg (12.6 lbs)
Net weight excluding batteries 5 kg
Net weight excluding batteries lbs 11
Color calibration SGM proprietary, full color calibration
Dehumidifier Base / Head
Dimming 2 Smooth fade in, DMX-controllable curves: gamma corrected, and linear
Emulation mode / effect Built-in color presets, display selectable
Filters Magnetic easy-fit spread angle filter frames
LED panel 2 individually controllable segments
Strobe Ultra-high-speed strobe effects
Pixel strobe feature (up to 2 segments)
Tilt 0 - 190°
Electrical protection Overload protection with automatic recover
Input voltage, nominal 100 - 240 VAC; 50 / 60 Hz
Max inrush current 230VAC 60 A
Max power consumption 90 W
Power Supply Unit High-efficiency electronic switch-mode
Standby power consumption 3 W
Programming and Control
16-bit control Dimmer, Red, Green, Blue, White
Cabled DMX 5 pin XLR input/output
DMX channels 3, 4, 6, 9, 11 or 16
DMX modes 6
Protocol CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
Wireless RDM
Setting and addressing OLED graphical display / 4 buttons
Standalone mode
Standalone mode Quick Color
3 programs with up to 24 scenes
Wireless DMX Lumen Radio with RDM
DMX data in/out IP65 XLR 5-pin connector, Female
IP65 XLR 5-pin connector, Male
Power Power input connector
Mounting point 2 quarter-turn locking points for one Omega bracket
Orientation Any
Rigging possibilities Hanging (Omega Bracket included) or ceiling/wall mount (optional)
Safety features Bottom mount for safety wire
Minimum distance to combustible materials: 0.3 meter (11 in).
Cooling Passive
Humidity (max.) 98 %
Temperature range, battery operating -20°C to 50°C
Temperature range, battey Start-up -20°C to 50°C
Temperature range, charging 10°C to 45°C
Temperature range, operating 0°C to 45°C
Temperature range, operating max 45 °C
Temperature range, operating min 0 °C
Temperature range, start-up 0°C to 45°C
Temperature range, storage -20°C to 25°C
Thermal protection Automatic overtemperature protection
Total heat dissipation, max power 307.1 BTU per hour
Total heat dissipation, standby 10.2 BTU per hour
Included items
Included items 2 m IP66 power cable pigtail
1 Omega bracket with quarter-turn fasteners
Safety instructions and installation quick guide
Battery capacity Configurable up to 24 hours
Battery capacity (typical use) 10 - 12
Battery charge time up to 100% 6.5 hours
Battery charge time up to 75% 3.5 hours
Battery option YES
Battery status Battery level indicator
Battery type Lithium-Ion battery
Durability > 1000 cycles
