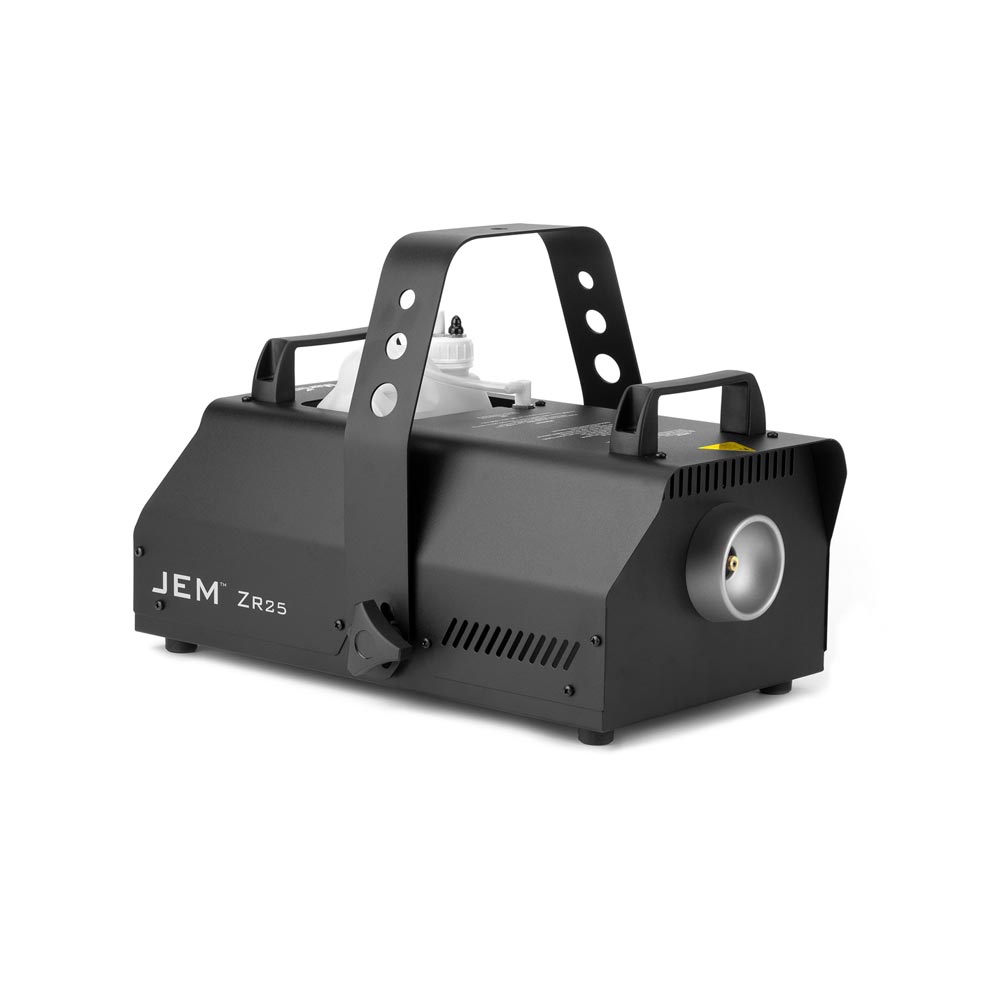

MARTIN JEM ZR25 1150 WATT PROFESSIONAL FOG MACHINE

$998.00
Unit price per

Shipping calculated at checkout.

The JEM ZR25 is a small, yet powerful fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its 1,150 W heat exchanger, the JEM ZR25 produces large amounts of fog ideal for small to medium-sized venues and stages in both install and rental markets.The JEM ZR25 features variable output control for more subtle effects and is fully up-to-date with an integrated digital remote control, and DMX with RDM.
The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.

Small but powerful fog machine
Exceptional performance and output for its size
Simple plug-and-play operation via remote control or DMX

FEATURES

Robust roadworthy design
Integrated Digital Remote Control
DMX with RDM
Floor standing or truss mounting (hanging bracket included)
1,150 W heat exchanger
600 m³ (21,189 ft.³) per minute fog output
Variable output control for subtle effects
Continuous effect output
Compatible with a wide range of JEM Pro-Fog fluids
2.5-l Fluid reservoir with quick-connect fitting
Easy external fluid connection
Optional Ducting Kit

SPECIFICATIONS

PHYSICAL
Length: 485 mm (19.1 in.)
Width: 335 mm (13.2 in.)
Height: 242 mm (9.6 in.)
Height with hanging bracket: 333 mm (13.2 in.)
Weight, dry: 11.2 kg (24.7 lbs.)
Weight, filled: 13.7 kg (30.2 lbs.)

PERFORMANCE
Coverage volume: 600 m3 (21,189 ft3) per minute
Fluid consumption (max.): 100 ml per minute
Maximum operating time, maximum output, 2.5 l of fluid: 1.2 hours
Ready time: 7-minutes
Continuous effect output

CONTROL AND PROGRAMMING
Control options: Integrated digital remote control, DMX, master/slave link mode
Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM

CONSTRUCTION
Housing: Steel and aluminum
Color: Black
Heat exchanger: 1150 W, thermally protected
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
Remote Control: Integrated digital remote with 3 m (9.84 ft.) cable, 3-pin XLR connector
External Fluid Control: Fluid sensing
Hanging bracket: Integrated yoke with safety attachment point

INSTALLATION
Mounting: Standing or hanging
Orientation: Up to +/-40° from horizontal
Clearance around machine: 100 mm (4 in.)

CONNECTIONS
AC Power: Neutrik PowerCON TRUE1
DMX, link mode in/out: 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket

ELECTRICAL

US Model:

AC power: 100-130 V nominal, 50/60 Hz
Main fuse: 10 AT (slow blow), 125 V
Typical power and current: 1050 W, 8.8 A*

*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

THERMAL
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Exterior surface temperature, steady state: 30° C (86° F)
Maximum nozzle temperature: 290° C (554° F)

APPROVALS
EU safety: EN 60 335-1+A15, EN62233
EU EMC: EN 61000-6-3
EU immunity: EN 61000-6-1
US safety: UL 998
Canadian safety: CSA C.22.2 No. 104.01
Australia/NZ: RCM (pending)

INCLUDED ITEMS
Fluid reservoir, 2.5 l: P/N 34300521
JEM ZR Series Integrated Digital Remote Control: P/N 92765048
Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043
Power input cable, US, 10 A, PowerCON TRUE1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N 11501044
