• $2,015.00
    Unit price per
Shipping calculated at checkout.

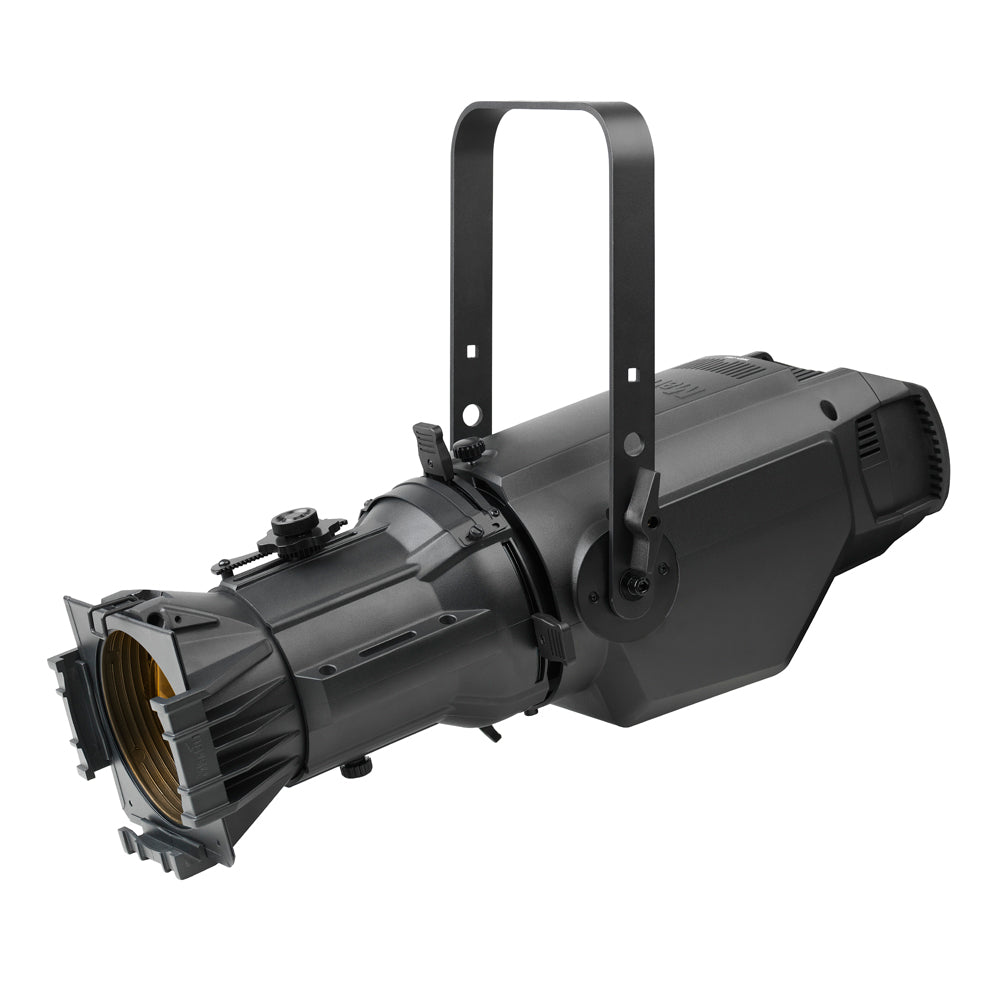

Martin ELP CL (Color) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you’ve come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.

Superior output, optics and color rendering, combined with unparalleled ease-of-use and convenience, make Martin ELP CL the leading Color LED ellipsoidal fixture in its class.


  • Impressive light output rating of 6,900 lumens (in High Output mode).
  • Superior CRI rating of 90 (in High Quality mode).
  • Revolutionary focus and functionality—industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
  • Compatible with universal accessories—use existing lens tubes, gel frames, gobo holders and rotators
Length: 648 mm (25.5 in.)
Width: 259 mm (10.2 in.)
Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket
Weight: 7.7 kg (17 lbs)
Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 - 100%
Strobe and pulse effects: Variable speed and action, random strobe
Color mixing: RGBLA
Color Temperature Range: 2000-10000K
Color selection: 26 color presets

Control options: DMX, stand-alone
16-bit control: Intensity, CTC, RGBLA

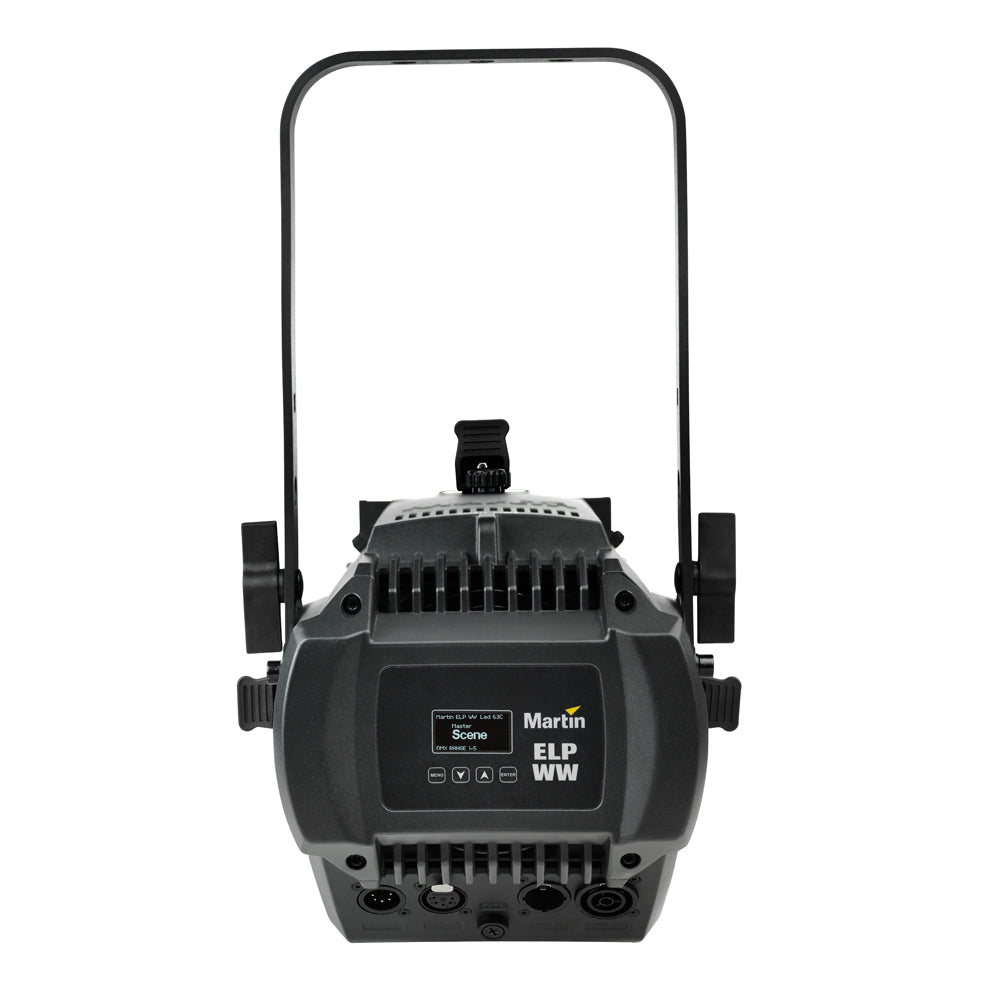

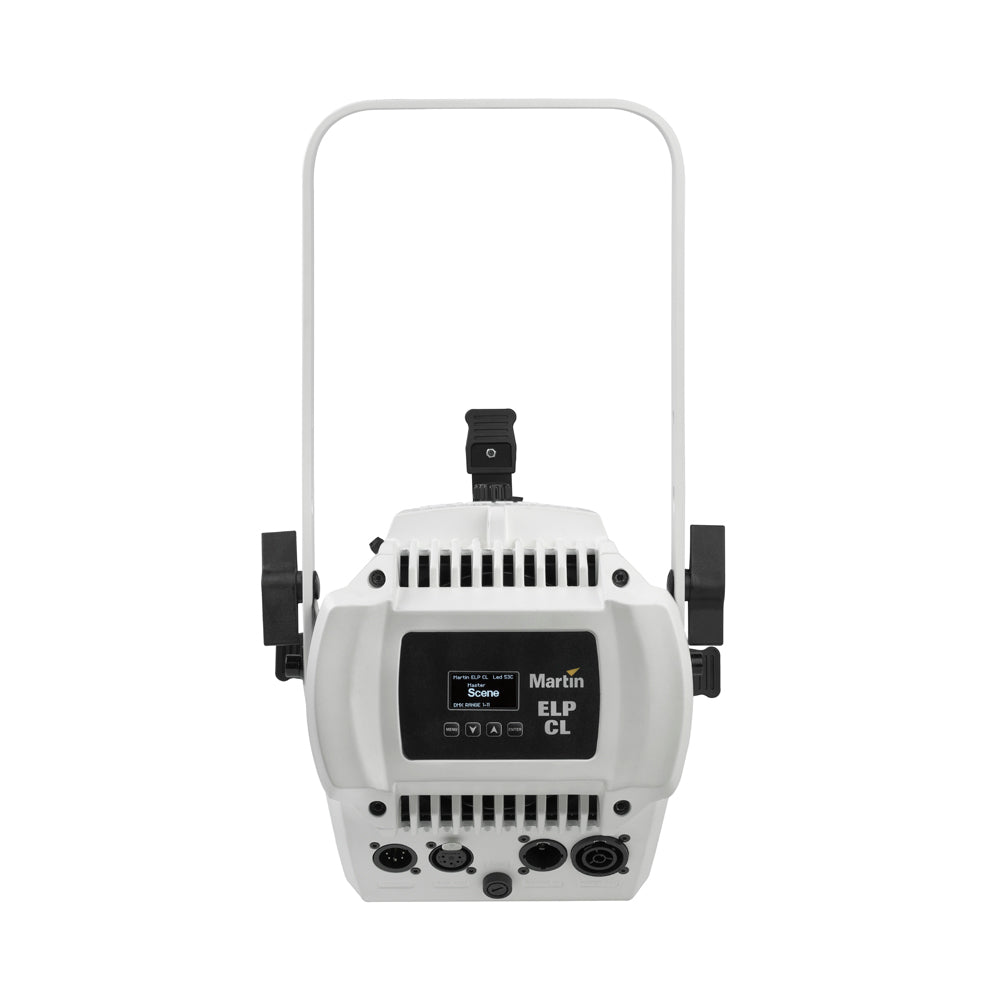

Setting and addressing: Control panel with OLED display or via RDM
DMX channels: 1/10/17
PWM: 600 - 1200 Hz
Standalone programming: Control panel with OLED display
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485

Light source: 91 X RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)
Color temperature: 2000-10000K
Lens tube options: 19°, 26°, 36°, 50°
Minimum LED lifetime: 30,000 hours (to >70% luminous output)*
*Figure obtained under manufacturer's test conditions
High Quality mode @ 6000K:
Light Engine luminous output: 20000 lumen
Fixture luminous output: 5900 lumen
CRI (Color Rendering Index): >90 @ 6000K
CQS (Color Quality Scale): >87
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >106
TLCI (Television Lighting Consistency Index): >87

High Output mode @ 5500K:
Light Engine luminous output: 20000 lumen
Fixture luminous output: 6900 lumen
CRI (Color Rendering Index): >85
CQS (Color Quality Index): >90
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >111
TLCI (Television Lighting Consistency Index): >85

Housing: Die-cast aluminum

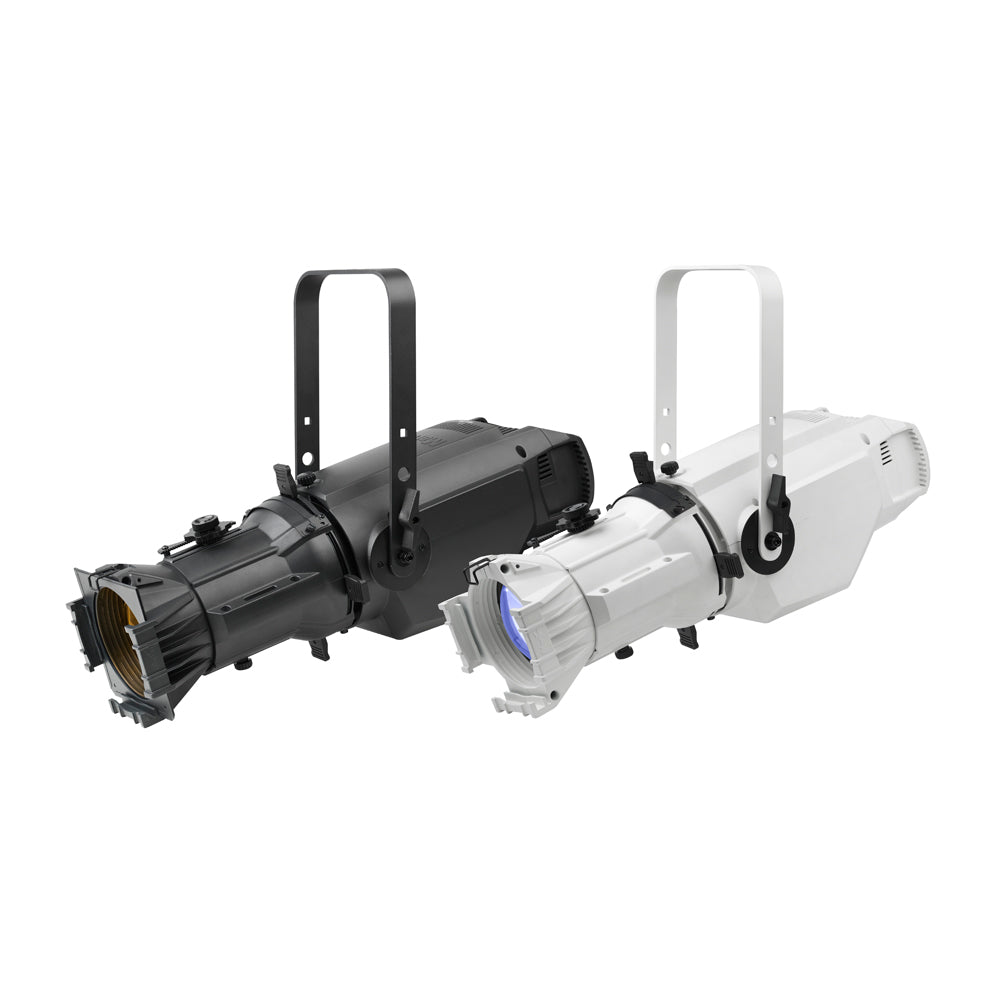

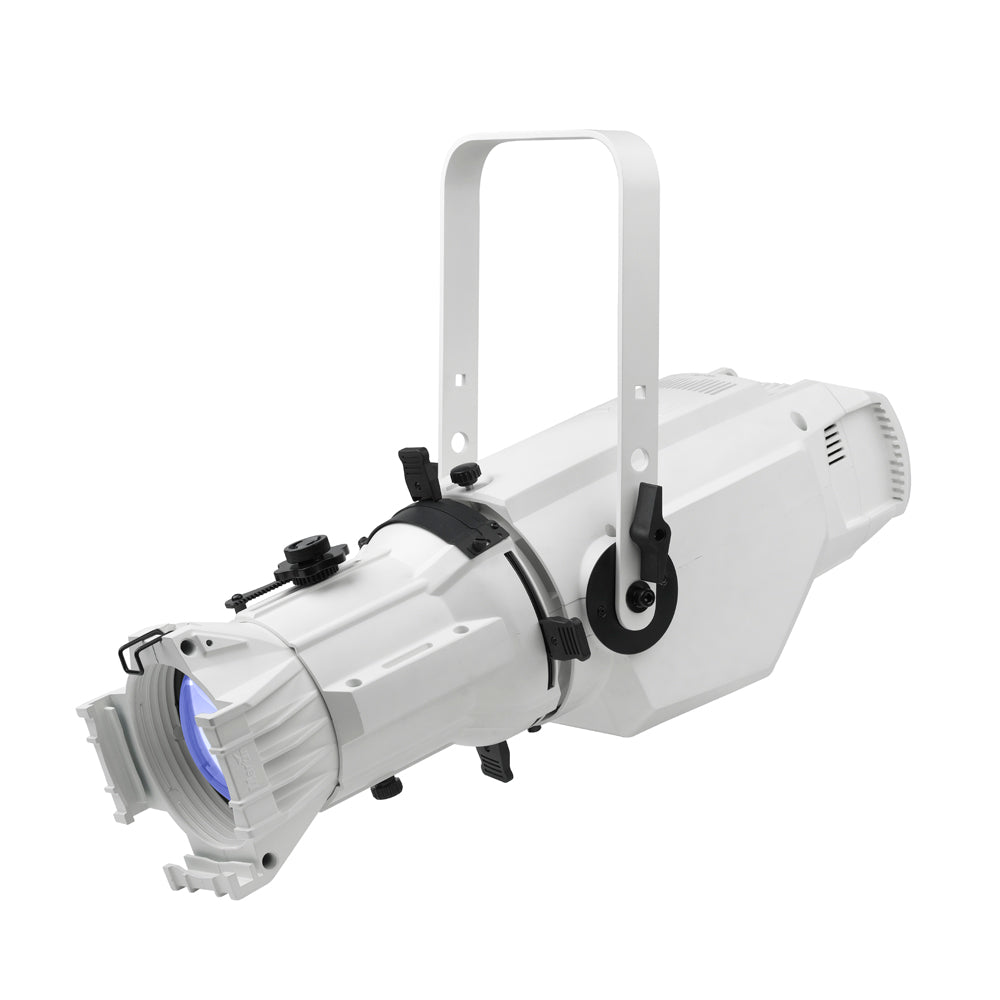

Color: Black or white variant
Protection rating: IP20

Gobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image*
Color frame size: 159 X 159 mm (6.25 X 6.25 in.)
*Gobo holder not included
Mounting: Adjustable bracket
Location: Indoor use only
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
AC power in, thru: Neutrik PowerCON TRUE1
DMX and RDM data in/out: 5-pin locking XLR
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Idle power (zero intensity): 5 W
Half-cycle RMS inrush current at 230 V, 50 Hz: 15.0 A
Fixture link via PowerCON at 100-120 V: Up to 4 fixtures
Fixture link via PowerCON at 200-240 V: Up to 9 fixtures
Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
110 V, 60 Hz: 2.4 A, 259 W, PF 0.99
208 V, 60 Hz: 1.3 A, 250 W, PF 0.96
230 V, 50 Hz: 1.3 A, 249 W, PF 0.95
240 V, 50 Hz: 1.1 A, 249 W, PF 0.95
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
Power input cable (0.75mm2, 18 AWG), bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.)
Mounting bracket
User manual
